Plastic enclosure with mounting flanges, Plastic Electrical Enclosures

  • Features
  • Accessories

Benefits for you:

1. Material: ABS or ABS+PC.

2. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass.

3. Higher intensity, and more durable.

4. Batter waterproof and Anti-corrosion performance, protect your instruments even under adverse environment.

5. Color and material can be changed as your requirement.

6. Certain modification can be done according to your requirements. Such as drilling, painting, punching, silk-screen, printing and etc.

7. Your design is welcome, the cost of mould can be free when order a large quantity.

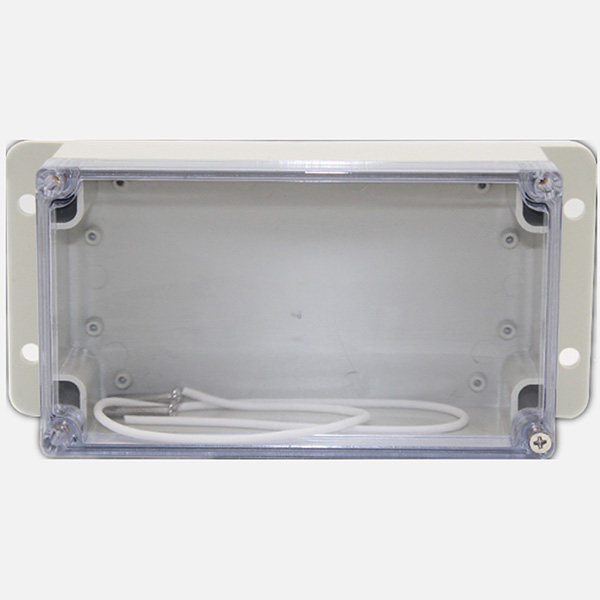

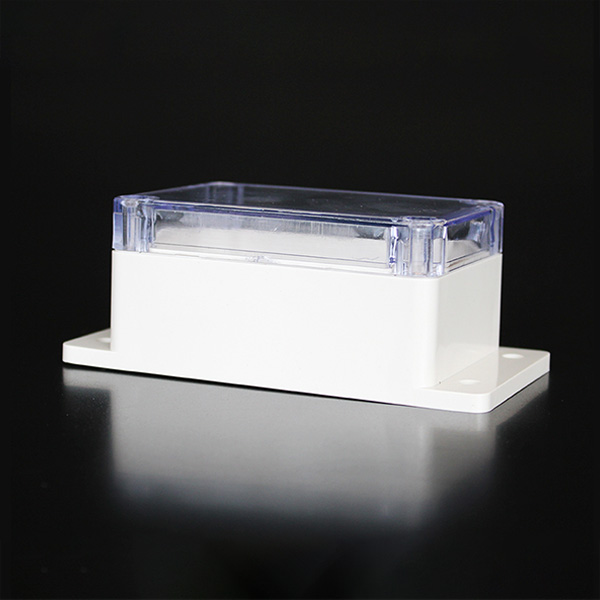

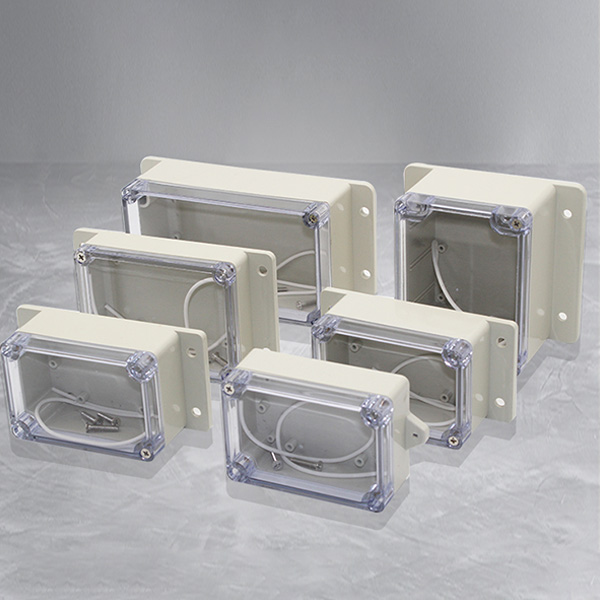

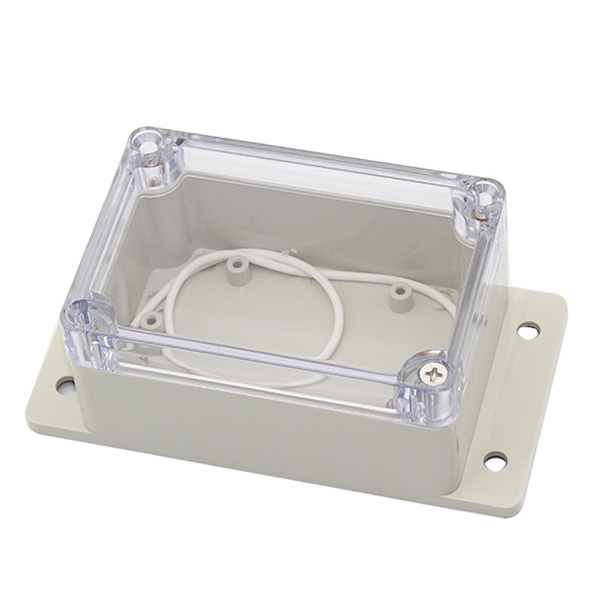

Short introduction:Plastic enclosure with mounting flanges, junction box with four Nickel-plated metal screws, material: ABS, light gray,
lock type: nut, Wall-mount enclosure.
Details:
1)Waterproof, dustproof, sunscreen, durable.
2)The corners of the enclosure are copper threads, anti-oxidation, non-slip wire.
3)Wing design on the side of the enclosure makes it easier to fix on the wall.
4)The transparent cover can see the components inside the enclosure, whether it is safe.
5)Can be customized according to customer requirements.
Product descriptionColor light gray
Enclosure material lower-cost ABS, Cover material PC
Cover fixing metal screws cover
The fastening device is screwed into the bottom of the housing
Waterproof sealing ring
Insulation type full insulation
Enclosure protection level (IP) IP65
Working temperature -25°C--90°C
Packaging DetailsStandard export packing
PortNingbo/Shanghai China

Technical parameters

ModelDimensions(mm)
W×L×H
Remark
MD-FF1120×200×75With Mounting Flanges
MD-FF1L120×200×108
MD-FF2S90×158×46
MD-FF290×158×60
MD-FF2L90×158×75
MD-FF390×115×55
MD-FF468×100×50
MD-FF5160×160×90
MD-FF6S185×265×60
MD-FF6185×265×80
MD-FF6L185×265×130
MD-FF6LL185×265×150


ModelDimensions(mm)
W×L×H
Remark
MD-FF790×158×45With Mounting Flanges
MD-FF890×158×40
MD-FF10240×320×110
MD-FF11260×380×105
MD-FF11L260×380×145
MD-FF14120×120×90
MD-FF15S150×230×60
MD-FF15150×230×85
MD-FF1958×83×33
MD-FF2058×65×35
MD-FF24188×192×100
MD-FF2581×83×56
