Stainless Steel Latch

Home / Products / Hinge Type Enclosures / Stainless Steel Latch / 175W×275Hx110D mm

    • 175W×275Hx110D mm
    • 175W×275Hx110D mm
    • 175W×275Hx110D mm
  • 175W×275Hx110D mm
  • 175W×275Hx110D mm
  • 175W×275Hx110D mm

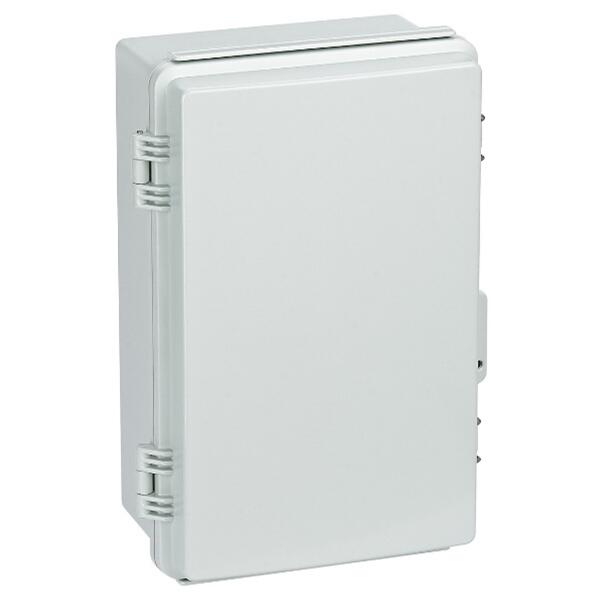

175W×275Hx110D mm

  • Features
  • Accessories

Benefits for you:

Waterproof Electrical Boxes(Hinge Type)


1. Material :ABS and PC alloy materials.


2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.



175W×275Hx110D mm

Technical parameters

Short introduction:Material:ABS and PC alloy materials., light gray,
Lock type: SUS Buckle, surface mounted enclosure.
Flame retardant grade:V-0,According to UL 94
Cover fixing:SUS latch, Plastic hinge
The fastening device is screwed into the bottom of the enclosures
Insulation type:Full Insulation
Enclosure protection level (IP):IP66
Body protection level (IK):IK08
Packaging DetailsStandard export packing
PortNingbo/Shanghai China


Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
Solid CoverTransparent Cover
100×150x903.94"×5.91"x3.54"101509-B101509-A
125×175x904.92"×6.89"x3.54"121709-B121709-A
150×150x905.91"×5.91"x3.54"151509-B151509-A
160×210x1006.3×8.28"x3.94"162110-B162110-A
175×275x1106.89"×10.83"x4.33"172711-B172711-A
200×300x1307.87"×11.81"x5.12"203013-B203013-A
250×350x1509.84"×13.78"x5.91"253515-B253515-A
330×430×18013"×16.93"x7.09"334318-B334318-A
430×530x20016.93"×20.87"x7.87"435320-B435320-A
430×630×23016.93"×24.8"x9.06"436323-B436323-A
530×730×25020.87"×28.74"x9.84"537325-B537325-A
630×830×28024.8"×32.68"x11.02"638328-B638328-A

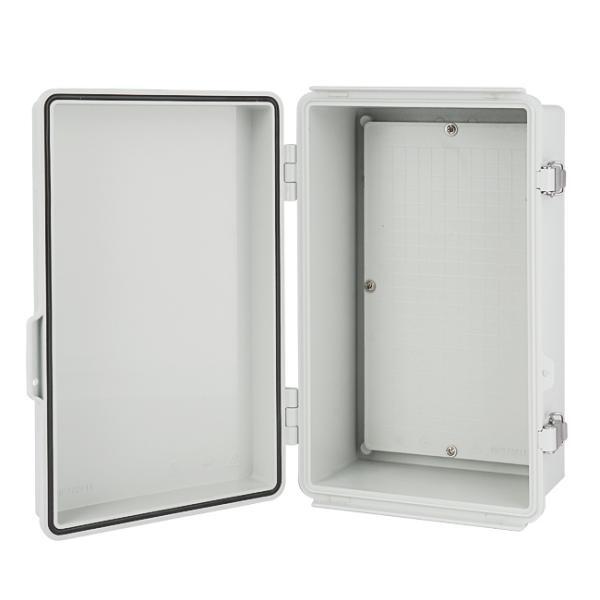

Inner door and mounting plate are optional
