Benefits for you:
1. The guide rail on the internal base can horizontally fix the circuit breaker or other electrical components.
2. Higher intensity, and more durable.
3. Open the cover up and down.
4. Waterproof and moisture-proof.
5. High-quality PC plastic material, thick sheet, convenient and durable, not easy to change color. Safe and secure, guarding your electricity safety.

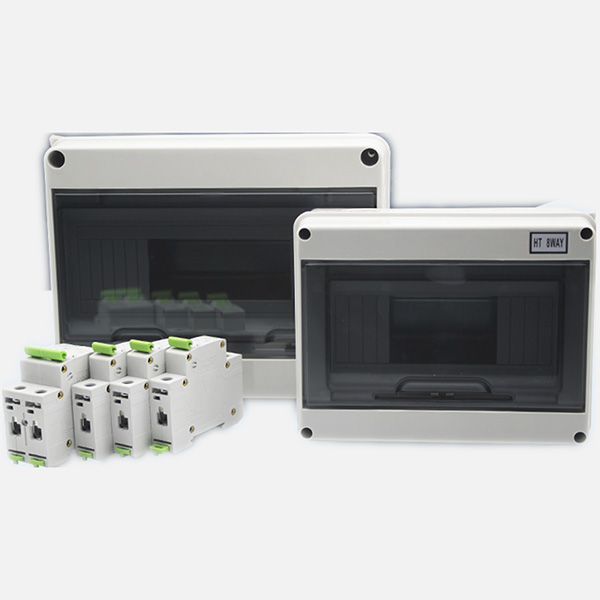

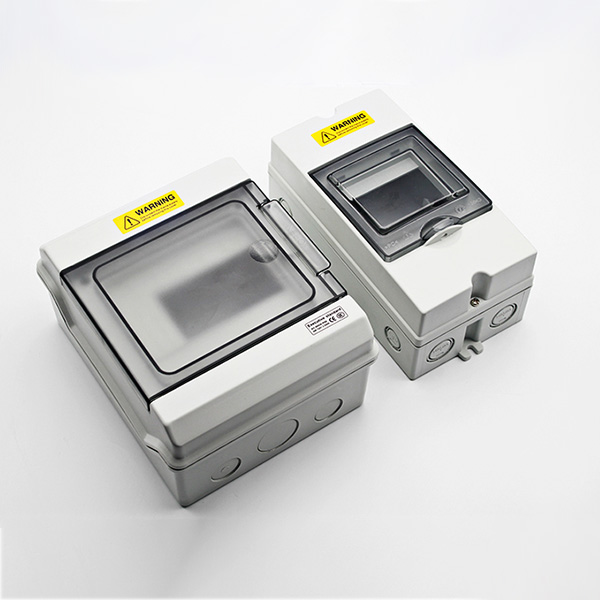

| Short introduction: | Plastic distribution box, color white, surface-mounted box. Details: 1)Outdoor waterproof distribution box, waterproof, sunscreen, dustproof. 2)There are reserved holes on the side, the size is PG13.5, PG24, PG29. 3)The inside of the box is equipped with guide rails. 4)The transparent cover can see the components inside the enclosure, whether it is safe. 5)Sealing ring made of polyacid material, corrosion-resistant and waterproof. 6)Wide range of applications. Housing, factories, workshops, airports, cruise ships. |
| Product description | Color white |
| Body material ABS, Lid material PC | |
| Frosted transparent lid with side opening | |
| Waterproof sealing ring | |
| Box protection level (IP) IP65 | |
| Working temperature -25°C--90°C | |
| Warranty period, month | 12 |
| Packaging Details | Standard export packing |
| Port | Ningbo/Shanghai China |
Technical parameters
| Model | Dimensions(mm) W×L×H | Qty of Modules | Description |

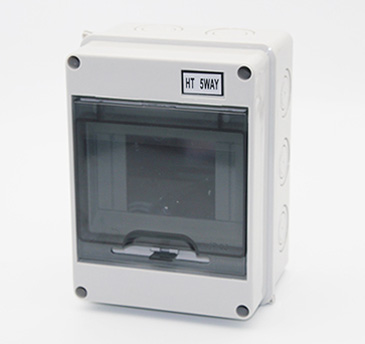

| MD-HT5 | 120×160×90 | 5 Ways |  |

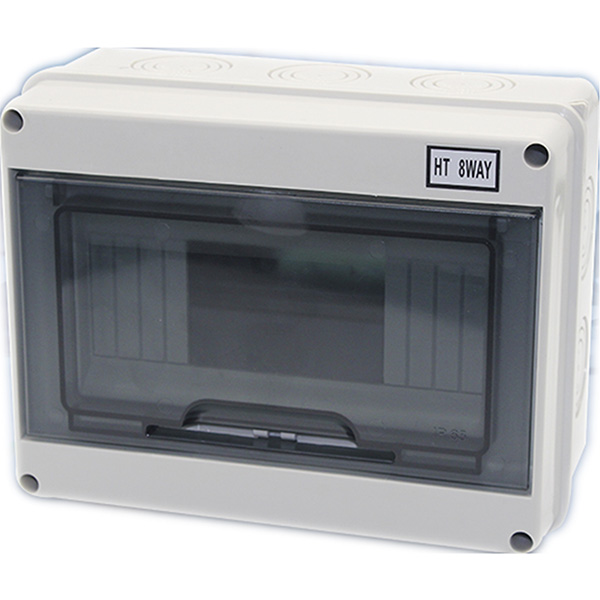

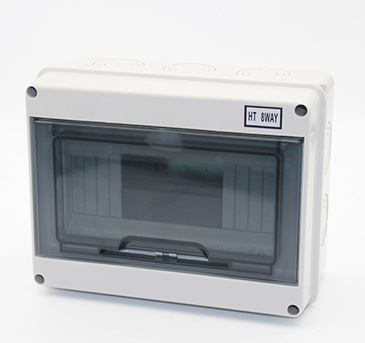

| MD-HT8 | 200×155×95 | 8 Ways |  |

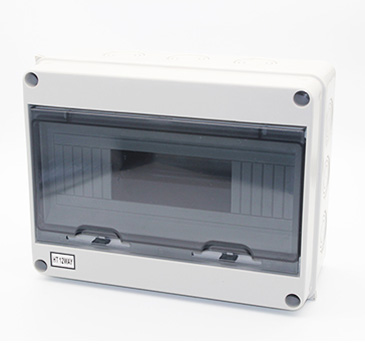

| MD-HT12 | 250×195×110 | 12 Ways |  |

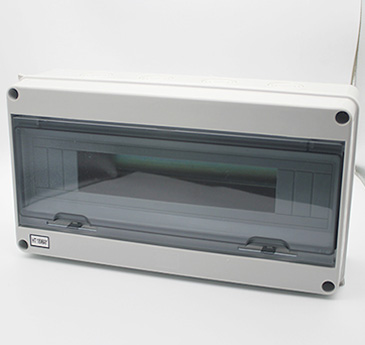

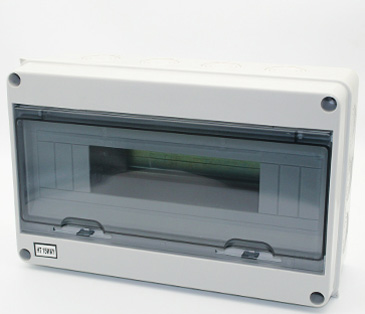

| MD-HT15 | 310×195×110 | 15 Ways |  |
| MD-HT18 | 365×195×110 | 18 Ways |  |

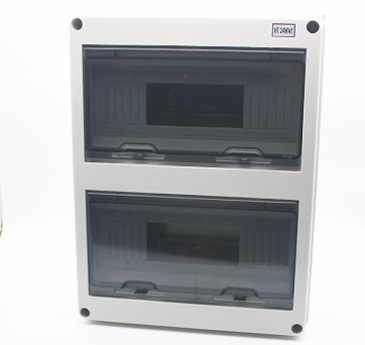

| MD-HT24 | 280×360×110 | 24 Ways |  |
