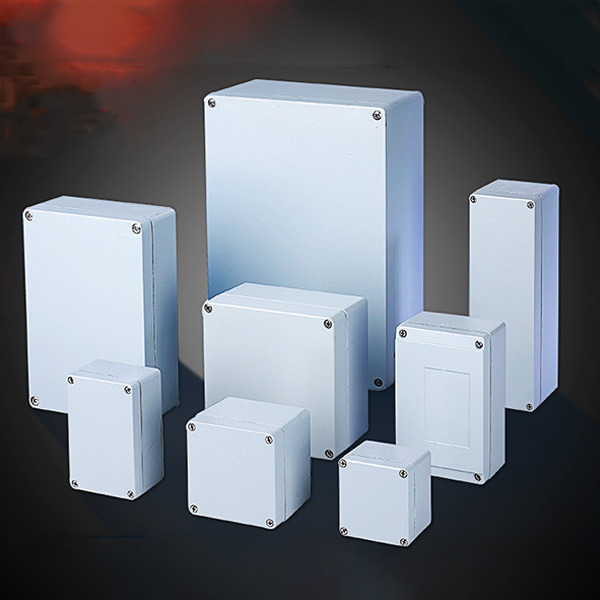

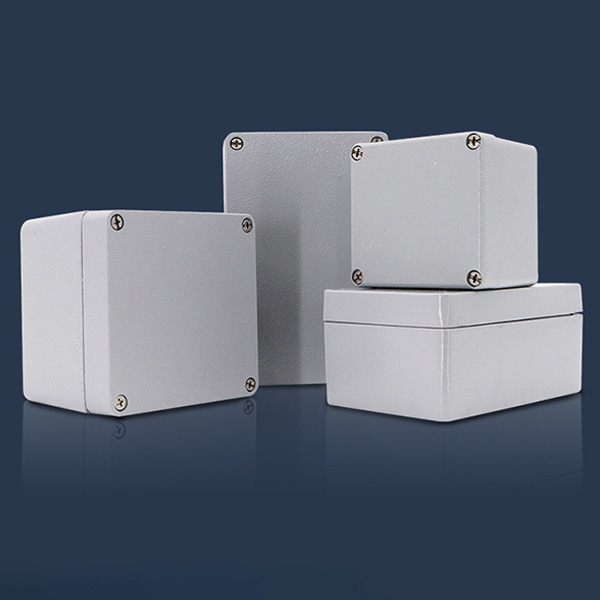

Aluminum enclosures, Die-cast aluminum alloy enclosures

  • Features
  • Accessories

Benefits for you:

1. Material: Aluminum.

2. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass.

3. Higher intensity, and more durable.

4. Batter waterproof and Anti-corrosion performance, protect your instruments even under adverse environment.

5. Color and material can be changed as your requirement.

6. Certain modification can be done according to your requirements. Such as drilling, painting, punching, silk-screen, printing and etc.

7. Your design is welcome, the cost of mould can be free when order a large quantity.

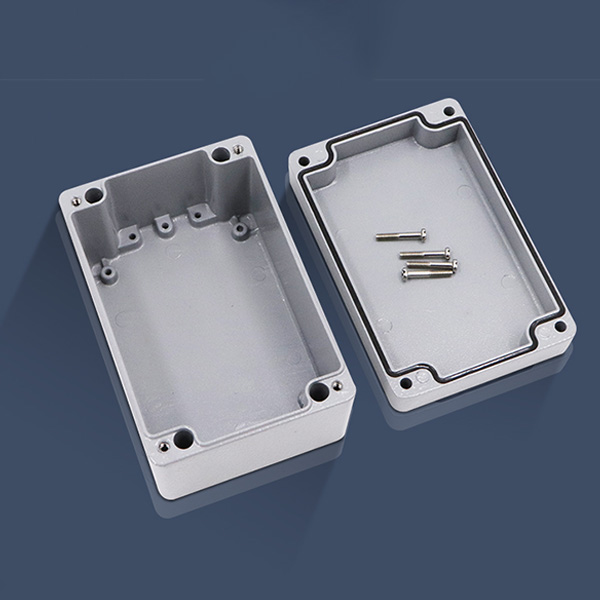

Short introduction:Aluminum enclosures junction box with four Nickel-plated metal screws, color gray,
lock type: nut, surface-mounted enclosure.
Details:

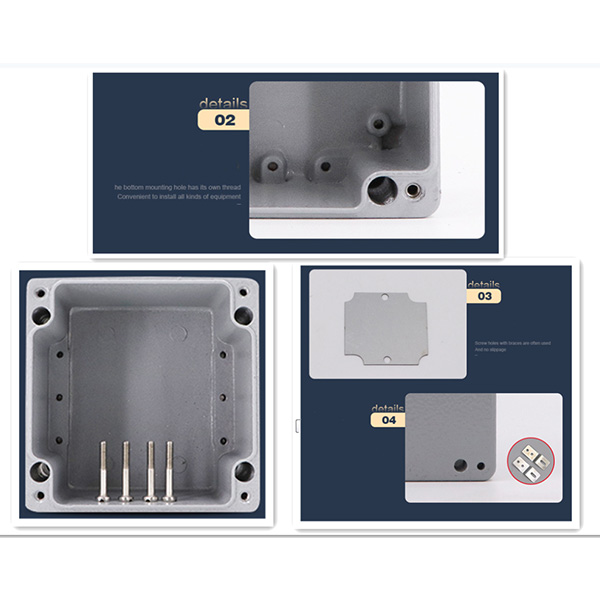

1)Cast aluminum waterproof box, high compressive strength, sturdiness and durability, high temperature resistance, corrosion resistance, waterproof, dustproof, can be used in harsh environments, safe and secure.
2)The bottom mounting hole comes with thread, which is convenient for the installation of various equipment.
3)Can be equipped with mounting base plate according to customer needs, (The bottom plate needs to be purchased separately).
4)There is a threaded mounting hole on the back of the enclosure for convenient mounting bracket.
Product descriptionColor gray
Enclosure material Aluminum
Cover fixing metal screws cover
The fastening device is screwed into the bottom of the housing
Sealing Dispensing material
Enclosure protection level (IP) IP65
Working temperature -25°C--90°C
Packaging DetailsStandard export packing
PortNingbo/Shanghai China

Technical parameters

ModelDimensions(mm)
W×L×H

ModelDimensions(mm)
W×L×H
MD-FA-06110364×111×37
MD-FA-121807120×188×78
MD-FA-06110565×115×58
MD-FA-141407140×140×75
MD-FA-07080675×80×60
MD-FA-161607160×160×75
MD-FA-08120680×125×60
MD-FA-161609160×160×90
MD-FA-08170580×175×58
MD-FA-162407160×240×75
MD-FA-08250680×250×65
MD-FA-162410160×240×100
MD-FA-08250880×250×80
MD-FA-182609185×265×95
MD-FA-101008100×100×80
MD-FA-182613185×265×130
MD-FA-101508100×150×80
MD-FA-233409235×340×95
MD-FA-101606100×160×65
MD-FA-233412235×340×120
MD-FA-121208120×120×82
MD-FA-233416235×340×160
