Benefits for you:
Aluminum enclosure
1)Material :Aluminum.

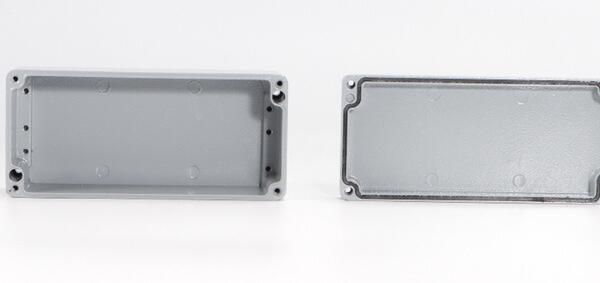

2)Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.
3)Higher intensity, and more durable.
4)Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment.
5)Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc.
6)Your design is welcome ,the cost of mould can be free when order a large quantity.
Technical parameters

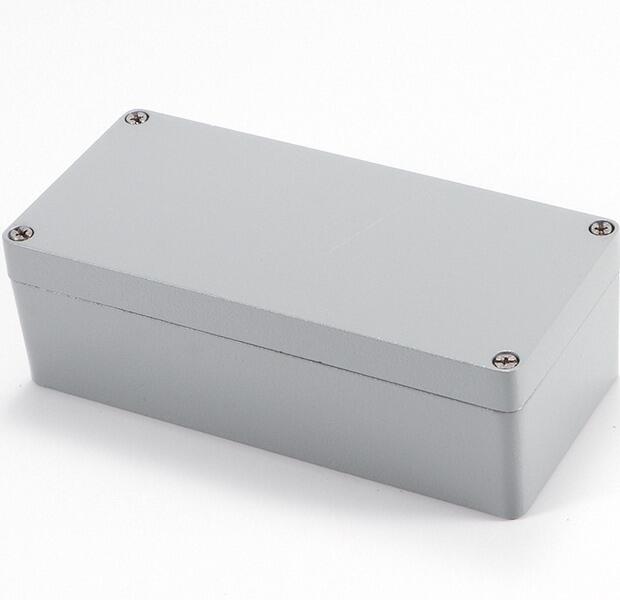

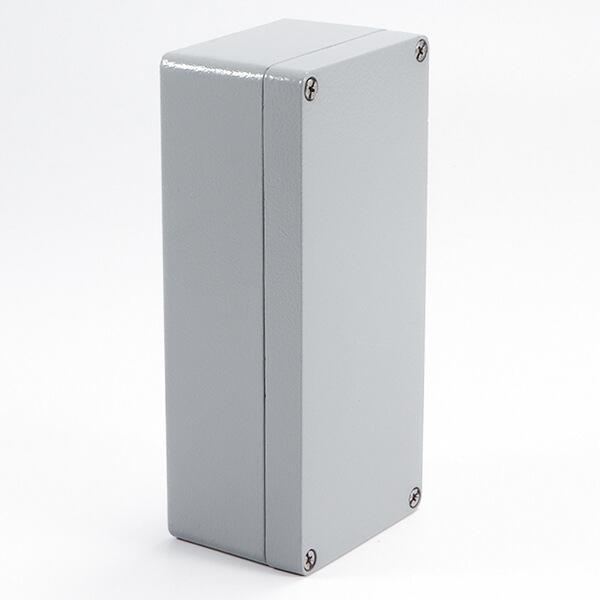

Short introduction: | Aluminum enclosures junction box with four Nickel-plated metal screws,color gray, lock type: nut,surface-mounted enclosure. Details: 1)Die-cast aluminum waterproof box, high compressive strength, sturdiness and durability, high temperature resistance, corrosion resistance, waterproof, dustproof, can be used in harsh environments, safe and secure. 2)The bottom mounting hole comes with thread, which is convenient for the installation of various equipment. 3)Can be equipped with mounting base plate according to customer needs. 4)There is a threaded mounting hole on the back of the enclosure for convenient mounting bracket. |
Product description | Color gray |
Enclosure material Aluminum | |
Cover fixing metal screws cover | |
The fastening device is screwed into the bottom of the housing | |
Sealing Dispensing material | |
Enclosure protection level (IP) IP65 | |
Working temperature -25°C--90°C | |
Packaging Details | Standard export packing |
Port | Ningbo/Shanghai China |
Dimensions(mm) L×W×H | Dimensions(Inch) L×W×H | Dimensions(mm) L×W×H | Dimension(Inch) L×W×H | |
64×58×35 | 2.52"×2.28"×1.38" | 220×155×95 | 8.66"×6.1"×3.74" | |
80×75×60 | 3.15"×2.95"×2.36" | 222×145×55 | 8.74"×5.71"×2.17" | |
90×36×31 | 3.54"×1.42"×1.22" | 222×145×55 | 8.74"×5.71"×2.17" | |
100×68×50 | 3.94"×2.68"×1.97" | 222×145×75 | 8.74"×5.71"×2.95" | |
100×100×60 | 3.94"×3.94"×2.36" | 222×145×80 | 8.74"×5.71"×3.15" | |
111×64×37 | 4.37"×2.52"×1.46" | 228×150×75 | 8.98"×5.91"×2.95" | |
115×65×55 | 4.53"×2.56"×2.17" | 240×160×75 | 9.45"×6.3"×2.95" | |
115×90×58 | 4.53"×3.54"×2.28" | 240×160×100 | 9.45"×6.3"×3.94" | |
115×90×60 | 4.53"×3.54"×2.36" | 250×80×60 | 9.84"×3.15"×2.36" | |
120×80×55 | 4.72"×3.15"×2.17" | 250×80×80 | 9.84"×3.15"×3.15" | |
120×120×82 | 4.72"×4.72"×3.23" | 250×120×82 | 9.84"×4.72"×3.23" | |
125×80×58 | 4.92"×3.15"×2.28" | 250×185×88 | 9.84"×7.28"×3.46" | |
135×85×56 | 5.31"×3.35"×2.21" | 250×190×90 | 9.84"×7.48"×3.54" | |
140×140×75 | 5.51"×5.51"×2.95" | 260×185×96 | 10.24"×7.28"×3.78" | |
145×100×45 | 5.71"×3.94"×1.77" | 260×185×128 | 10.24"×7.28"×5.04" | |
150×100×80 | 5.91"×3.94"×3.15" | 265×185×75 | 10.43"×7.28"×2.95" | |
160×100×60 | 6.3"×3.94"×2.36" | 280×230×110 | 11.02"×9.06"×4.33" | |
160×100×65 | 6.3"×3.94"×2.56" | 300×200×150 | 11.81"×7.87"×5.91" | |
160×160×70 | 6.3"×6.3"×2.76" | 300×210×100 | 11.81"×8.27"×3.94" | |
160×160×90 | 6.3"×6.3"×3.54" | 300×210×130 | 1181"×8.27"×5.12" | |
160×160×86 | 6.3"×6.3"×3.39" | 320×120×90 | 12.6"×4.72"×3.54" | |
175×80×56 | 6.89"×3.15"×2.2" | 340×235×95 | 13.39"×9.25"×3.74" | |
175×80×80 | 6.89"×3.15"×3.15" | 340×235×120 | 13.39"×9.25"×4.72" | |
180×140×55 | 7.09"×5.51"×2.17" | 340×235×135 | 13.39"×9.25"×5.31" | |
185×135×85 | 7.28"×5.31"×3.35" | 340×235×160 | 13.39"×9.25"×6.3" | |
188×120×78 | 7.4"×4.72"×3.07" | 360×160×95 | 14.17"×6.3"×3.74" | |
200×130×78 | 7.87"×5.12"×3.07" | 400×300×150 | 15.75"×11.81"×5.91" | |
200×130×88 | 7.87"×5.12"×3.46" | 400×300×180 | 15.75"×11.81"×7.09" | |
200×230×110 | 7.87"×9.06"×4.33" |
If it does not match the product dimension you want, please contact us.
