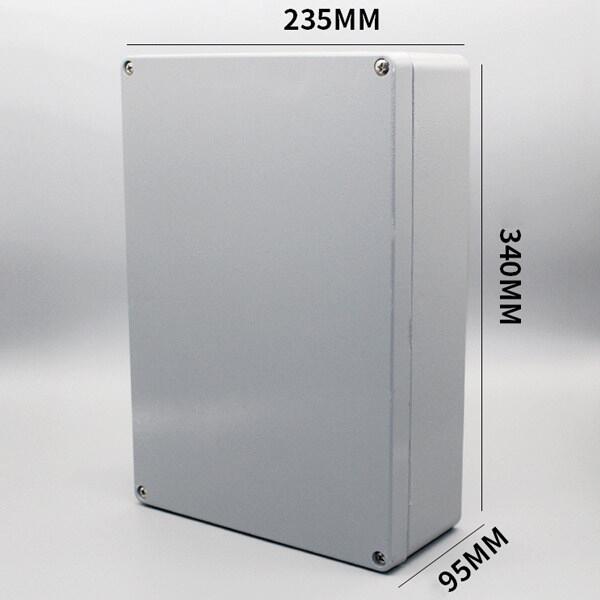

340W×235H×95D mm

  • Features
  • Accessories

Benefits for you:

Aluminum enclosure


1)Material :Aluminum.

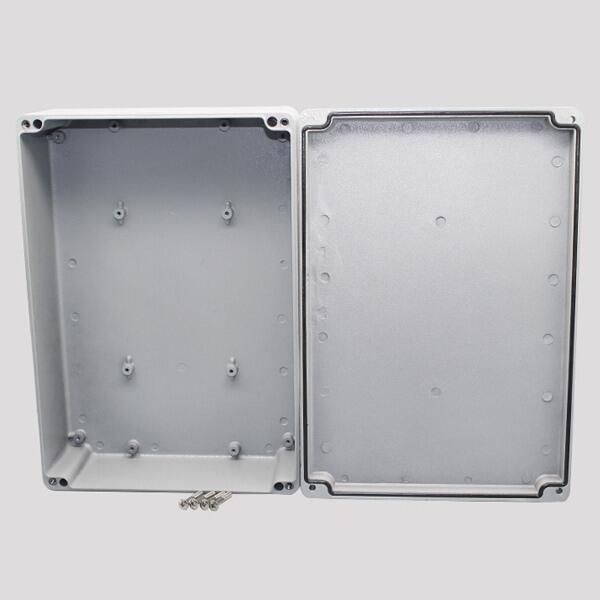

2)Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3)Higher intensity, and more durable.


4)Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment.


5)Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc.


6)Your design is welcome ,the cost of mould can be free when order a large quantity.


Technical parameters

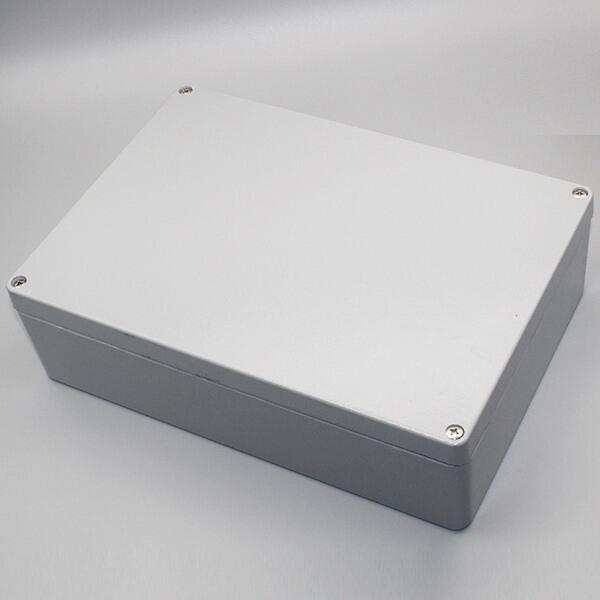

Short introduction:Aluminum junction box with four stainless steel screws, gray,
Lock type: nut, surface mounted enclosure.

detail:
1) Die-cast aluminum waterproof box, high compressive strength, sturdiness and durability, high temperature resistance, corrosion resistance, waterproof, dustproof, can be used in harsh environments, safe and reliable.
2) The bottom mounting hole is threaded, which is convenient for installing various equipment.
3) Mounting base plate can be equipped according to customer needs.
4) There are four threaded mounting holes on the back of the enclosure for convenient installation of the bracket.
Product descriptionColor gray
Enclosure material Aluminum
Cover fixing metal screws cover
The fastening device is screwed into the bottom of the housing
Styrofoam seal
Enclosure protection level (IP) IP65
Working temperature -25°C--90°C
Packaging DetailsStandard export packing
PortNingbo/Shanghai China



Dimensions(mm)
L×W×H
Dimensions(Inch)
L×W×H

Dimensions(mm)
L×W×H
Dimension(Inch)
L×W×H
64×58×352.52"×2.28"×1.38"
220×155×958.66"×6.1"×3.74"
80×75×603.15"×2.95"×2.36"
222×145×558.74"×5.71"×2.17"
 90×36×313.54"×1.42"×1.22"
222×145×558.74"×5.71"×2.17"
100×68×503.94"×2.68"×1.97"
222×145×758.74"×5.71"×2.95"
100×100×803.94"×3.94"×3.15"
222×145×808.74"×5.71"×3.15"
111×64×374.37"×2.52"×1.46"
228×150×758.98"×5.91"×2.95"
115×65×554.53"×2.56"×2.17"
240×160×759.45"×6.3"×2.95"
115×90×584.53"×3.54"×2.28"
240×160×1009.45"×6.3"×3.94"
115×90×604.53"×3.54"×2.36"
250×80×609.84"×3.15"×2.36"
120×80×554.72"×3.15"×2.17"
250×80×809.84"×3.15"×3.15"
120×120×824.72"×4.72"×3.23"
250×120×829.84"×4.72"×3.23"
125×80×584.92"×3.15"×2.28"
250×185×889.84"×7.28"×3.46"
135×85×565.31"×3.35"×2.21"
250×190×909.84"×7.48"×3.54"
140×140×755.51"×5.51"×2.95"
260×185×9510.24"×7.28"×3.78"
145×100×455.71"×3.94"×1.77"
260×185×12810.24"×7.28"×5.04"
150×100×805.91"×3.94"×3.15"
265×185×7510.43"×7.28"×2.95"
160×100×606.3"×3.94"×2.36"
280×230×11011.02"×9.06"×4.33"
160×100×656.3"×3.94"×2.56"
300×200×15011.81"×7.87"×5.91"
160×160×706.3"×6.3"×2.76"
300×210×10011.81"×8.27"×3.94"
160×160×906.3"×6.3"×3.54"
300×210×1301181"×8.27"×5.12"
160×160×866.3"×6.3"×3.39"
320×120×9012.6"×4.72"×3.54"
175×80×566.89"×3.15"×2.2"
340×235×9513.39"×9.25"×3.74"
175×80×806.89"×3.15"×3.15"
340×235×12013.39"×9.25"×4.72"
180×140×557.09"×5.51"×2.17"
340×235×13513.39"×9.25"×5.31"
 185×135×857.28"×5.31"×3.35"
340×235×16013.39"×9.25"×6.3"
188×120×787.4"×4.72"×3.07"
360×160×9514.17"×6.3"×3.74"
200×130×787.87"×5.12"×3.07"
400×300×15015.75"×11.81"×5.91"
200×130×887.87"×5.12"×3.46"
400×300×18015.75"×11.81"×7.09"
200×230×1107.87"×9.06"×4.33"



If it does not match the product dimension you want, please contact us.
