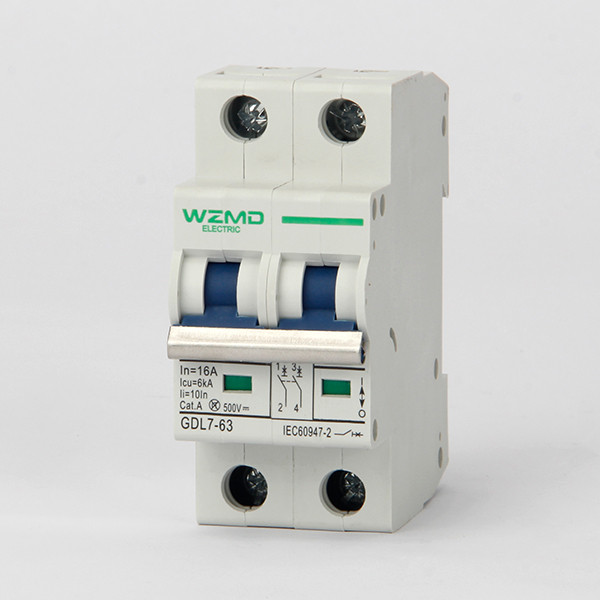

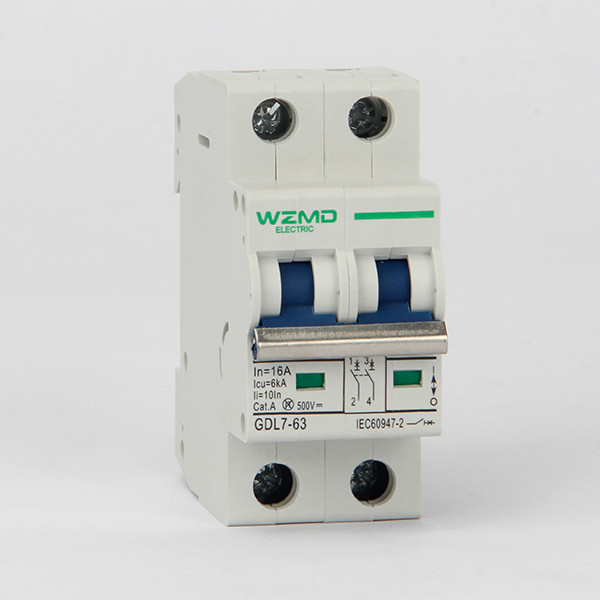

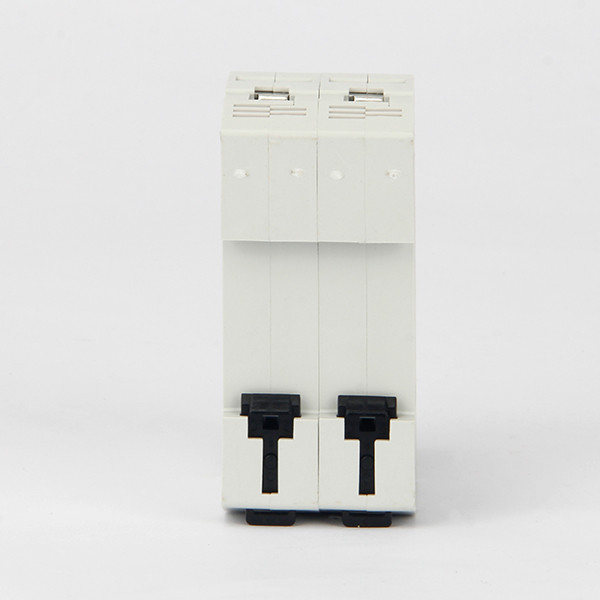

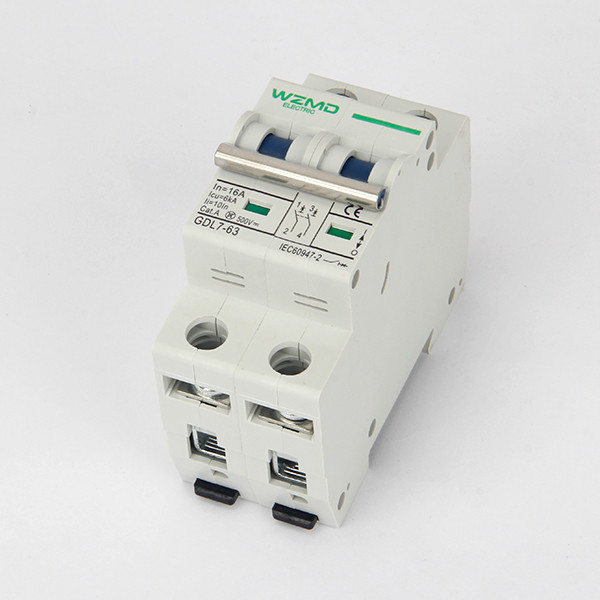

DC500v 6ka MCB 2P for solar pv system

  • Features
  • Accessories

Benefits for you:

Application

DC Circuit Breaker are mainly be used in PV solar power system, which are applied for DC solar combiner box, controller, etc.

The Maxvoltage up to DC1000V,Current up to 63A, with the function of effective disconnection and Anti-reflux protection.

Scientific design of arc-extinguishing system keep PV system more safe.

Feature

  • Nonpolarity

  • High Short-Circuit/Breaking Capacity

  • Functions:Overload, Short Circuit, Unfrequent Operation and Anti-reflux Protection

  • Rated Voltage: DC1000V, Ultimate

  • Rated Current: 63A

  • Breaking Capacity: 6KA

  • Classification:1Pole,2 Pole,3Poles,4 Poles

  • Standard: IEC60947-2,GB14048-2


Technical parameters

Parameter



Electrical Characteristics
TypeDC MCB
StandardIEC60947-2,GB14048-2
Pole Rated Working Voltage     Ue1P DC 250V2P DC 500V3P DC 750V4P DC 1000V
Max Rated Current63A
Rated Current               In6A.10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Insulated Voltage      UiDC1000V
Breaking Capacity6KA
Service Lifecycle Operation
Machanical Life20000 times
Electrical Life6000 times
Isolator FunctionYes
Installation Environment
Ingress ProtectionIP20
Terminal Cross Section2.5-25mm2
Working Temperature-25°C ~+70°C
Storage Temperature-40°C -+85°C
Resistance to Humidity and HeatII (when humidity arrived to 55°C .relative humidity 95%)
Resistance to Shock2.6 IEC60068
Resistance to Impack2.27 IEC60068
