Screw Type Polycarbonate Enclosures

Home / Products / Screw Type Polycarbonate Enclosures / Polycarbonate Enclosure 274616

    • Polycarbonate Enclosure 274616
    • Polycarbonate Enclosure 274616
    • Polycarbonate Enclosure 274616
  • Polycarbonate Enclosure 274616
  • Polycarbonate Enclosure 274616
  • Polycarbonate Enclosure 274616

Polycarbonate Enclosure 274616

  • Features
  • Accessories

Benefits for you:

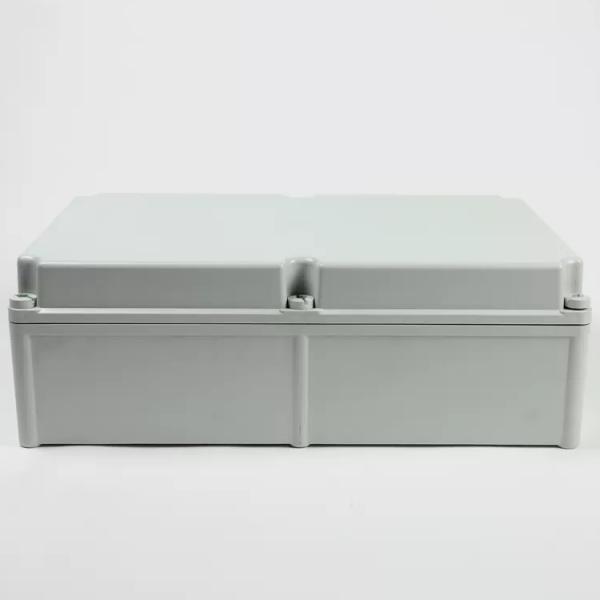

Polycarbonate Enclosure 274616

1. Material : Polycarbonate.

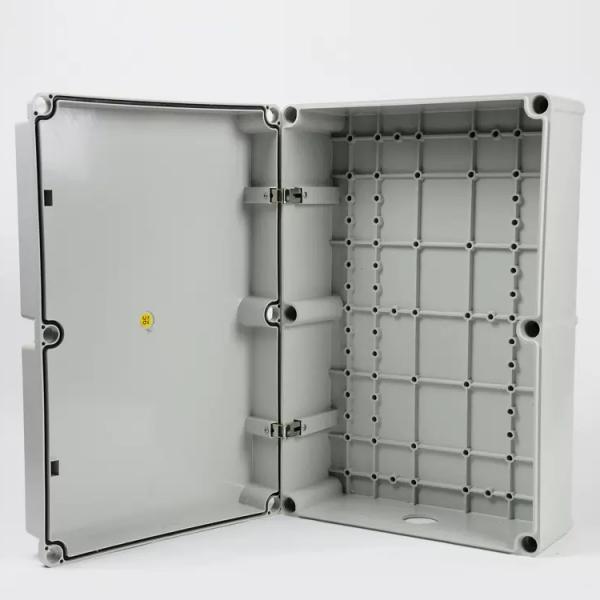

2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.

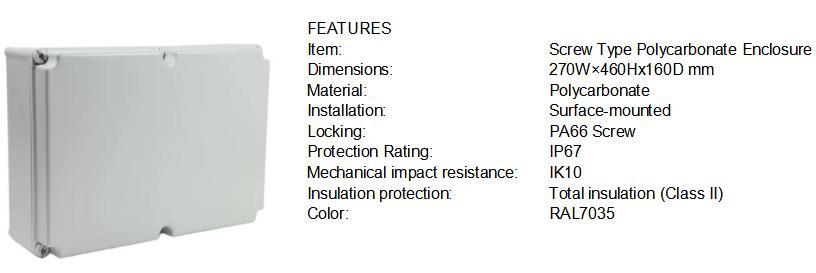

Technical parameters

Short introduction:Material: Polycarbonate, light gray,
Lock type: nut, surface mounted enclosures.
Product descriptionColor:Light Gray
Flame Retardant Grade:V-0,According to UL 94
Cover Fixing:Screw Cover
The fastening device is screwed into the bottom of the enclosures
Insulation Type: Total insulation (Class II)
Enclosure Protection Level (IP):IP67
Body Protection Level (IK):IK10
CertificationCE,Rohs,IP67,IK010
Packaging DetailsStandard Export Packing
PortNingbo/Shanghai China


270W×460Hx160D mm

Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H

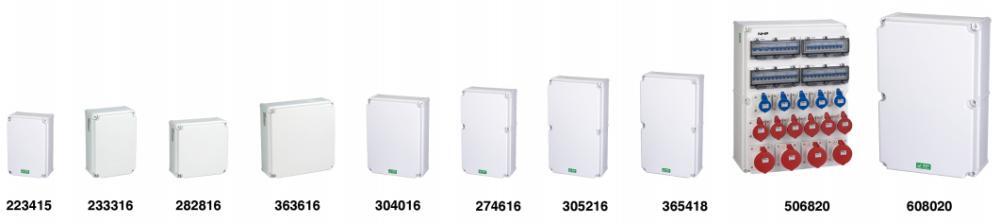

ModelFastening Screws(pcs)
220×340x1508.66"×13.39"x5.91"MD-PC2234154
230×330x1609.06"×12.99"x6.3"MD-PC2333164
270×460x16010.63"×18.11"x6.3"MD-PC2746164
280×280x16011.02"×11.02"x6.3"MD-PC2828164
300×400x16011.81"×15.75"x6.3"MD-PC3040164
300×520x16011.81"×20.47"x6.3"MD-PC3052166
360×360x16014.17"×14.17"x6.3"MD-PC3636166
360×540×18014.17"×21.26"x7.09"MD-PC3654186
500×680x20019.69"×26.77"x7.87"MD-PC5068206
600×800×20023.62"×31.5"x7.87"MD-PC6080206
