  • Features
  • Accessories

Benefits for you:

1. Material: ABS, PC, or ABS+PC with flame retardant.

2. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass.

3. Higher intensity, and more durable.

4. Batter waterproof and Anti-corrosion performance, protect your instruments even under adverse environment.

5. Color and material can be changed as your requirement.

6. Certain modification can be done according to your requirements. Such as drilling, painting, punching, silk-screen, printing and etc.

7. Your design is welcome, the cost of mould can be free when order a large quantity.


Short introduction:Plastic Electrical Boxes, light gray,
lock type: Metal Clasp, surface-mounted enclosure.

Details:

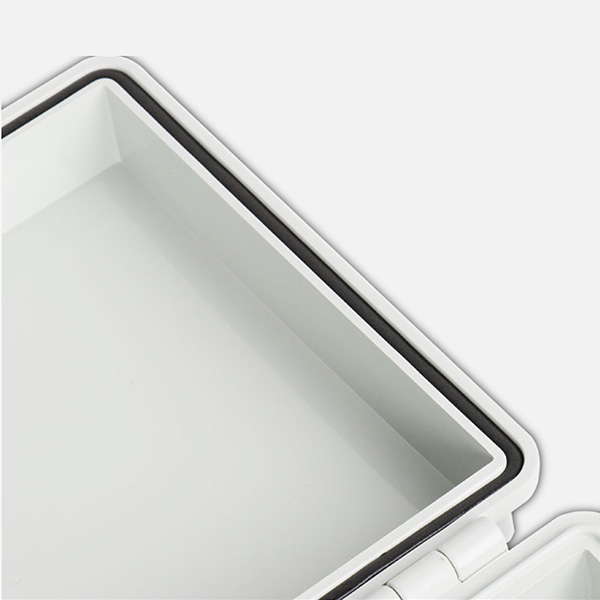

1)Reinforced sealing ring, the reinforced seal ring is elastic, not easy to break, and will not be deformed or yellowed after long-term use.
2)Buckle design, buckle hinge design allows you to easily open the box.
3)Can be locked, the box can be locked to prevent theft and protect your equipment.
4)Bracket, Box mounting bracket for easy fixing on the wall.
Product descriptionColor light gray
Body material ABS, Cover material ABS or PC
Cover fixing Metal Clasp cover
The fastening device is screwed into the bottom of the housing
Sealing material Reinforced Polyamide Sealing Ring
Insulation type full insulation
Enclosure protection level (IP) IP65
Working temperature -40°C--90°C
Packaging DetailsStandard export packing
PortNingbo/Shanghai China

Technical parameters

ModelDimensions(mm)
Width×Length×Height

ModelDimensions(mm)
Width×Length×Height

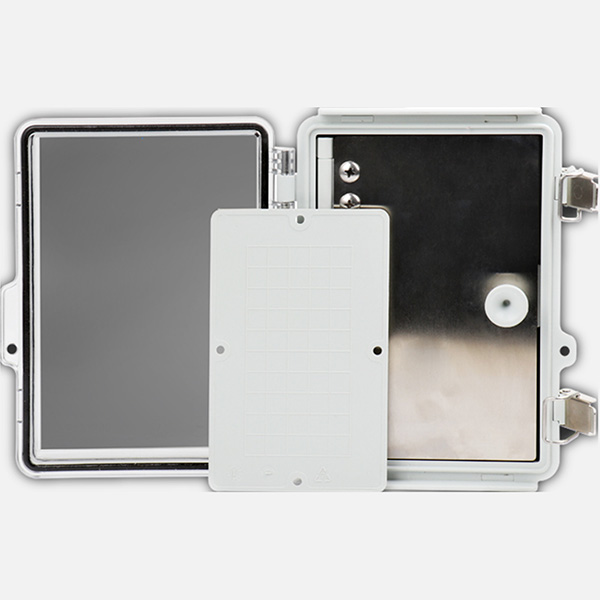

Inner Door
Width×Length&Material

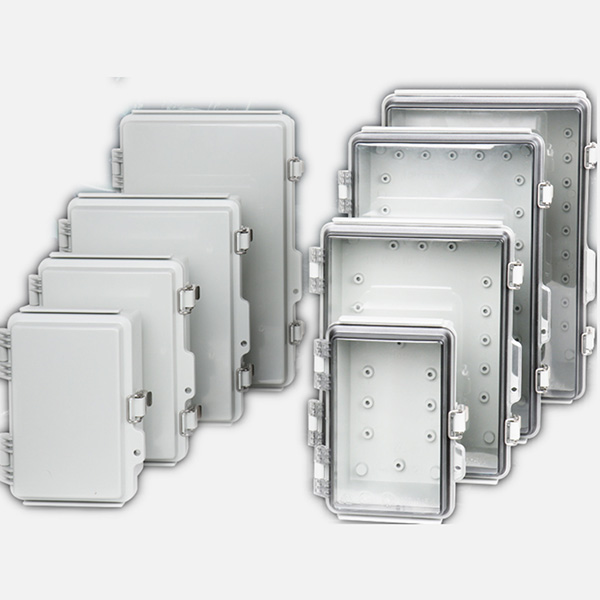

Solid CoverClear Cover
Metal
MD-CBG-101509100×150×90MD-CBT-101509100×150×90
/
MD-CBG-121709125×175×90MD-CBT-121709125×175×90
125×175
MD-CBG-151509150×150×90MD-CBT-151509150×150×90
150×150
MD-CBG-162110160×210×100MD-CBT-162110160×210×100
160×210
MD-CBG-172711170×270×110MD-CBT-172711170×270×110
170×270
MD-CBG-203013200×300×130MD-CBT-203013200×300×130
200×300
