MD-DB 6Ways

  • Features
  • Accessories

Benefits for you:

DB series high-end distribution boxes are beautiful, durable, safe and reliable.


Application: Mainly suitable for indoor and outdoor electrical, communications, fire-fighting equipment, steel smelting, petrochemical, electronics, power, railways, construction sites, mines, mining fields, airports, hotels, ships, large factories, coastal factories, unloading dock equipment , Wastewater treatment facilities, environmental pollution facilities, etc.

Effectively protect circuit breakers, air switches and other circuit equipment to prevent rain and moisture from damaging the electricity.


Features:

   1. The panel is made of engineering ABS material with high strength and will never change color. The transparent material is PC.

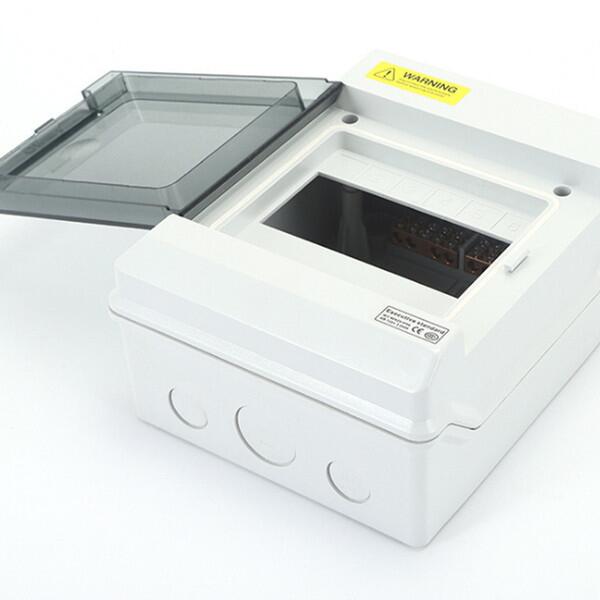

   2. Press-type opening and closing of the cover: The face cover of the distribution box adopts a press-type opening and closing method, and the cover can be opened by just pressing, and there is a hinge structure with a self-locking position when uncovered.

   3. Distribution box wiring design: the guide rail support plate can be raised to the highest point of activity, and the installation of wires is no longer restricted by the narrow space, making the installation easy. The distribution box switch is equipped with wire grooves and wire pipe openings, which is easy to use. Kind of wire tube, wire slot.


  • The guide rail on the internal base can horizontally fix the circuit breaker or other electrical components.

  • Higher intensity, and more durable.

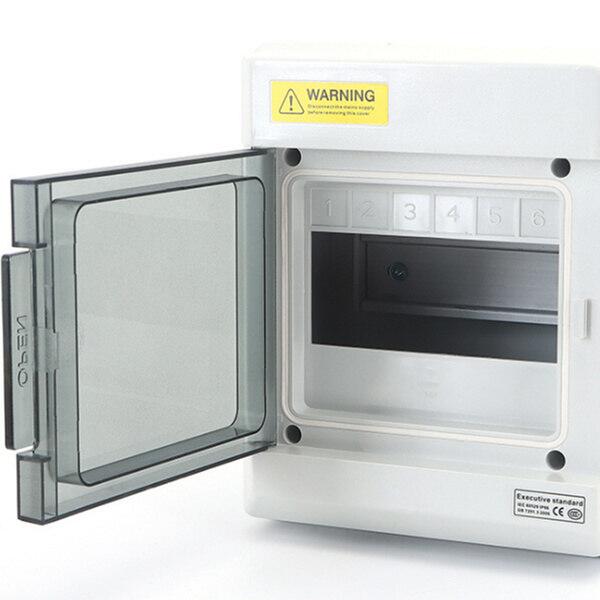

  • Open cover left and right.

  • Color can be changed as your requirement.


Technical parameters

Short Introduction:Plastic distribution box,color white,surface-mounted boxes.

Details:
1)Outdoor waterproof distribution box, waterproof, sunscreen, dustproof.

2)The inside of the box is equipped with guide rails and grounding terminals.

3)There are reserved holes on the side of the box for easy cable entry and exit.

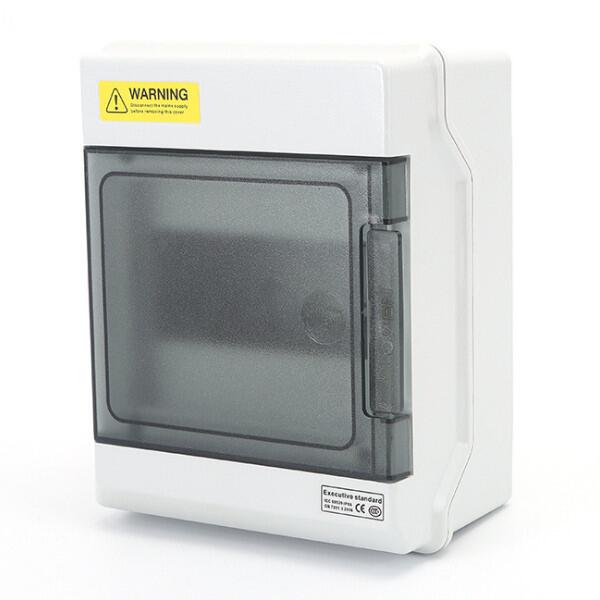

4)The transparent cover can see the components inside the enclosure, whether it is safe.

5)There is a waterproof sealing ring in the box, so that the water has nowhere to drill.

6)Wide range of applications. Housing, factories, workshops, airports, cruise ships.
Product DescriptionColor:White
Body Material:PC Flame Retardant Material
Frosted transparent lid with side opening
Waterproof Sealing Ring
Box Protection Level (IP):IP65
Packaging DetailsStandard Export Packing
PortNingbo/Shanghai China


ModelDimensions(mm)
W×L×D
Qty of ModulesWeight
(PCS/Kg)
Qty
(PCS/CTN)
MD-DB-150499×200×1014 Ways0.42530
MD-DB-1506165×200×1006 Ways0.55120
MD-DB-1509219×200×1009 Ways0.68520
MD-DB-1512273×230×11012 Ways0.93320
MD-DB-1518381×230×11018 Ways1.25110
MD-DB-1524273×380×11024 Ways1.710
MD-DB-1536381×380×11036 Ways2.510
