Benefits for you:

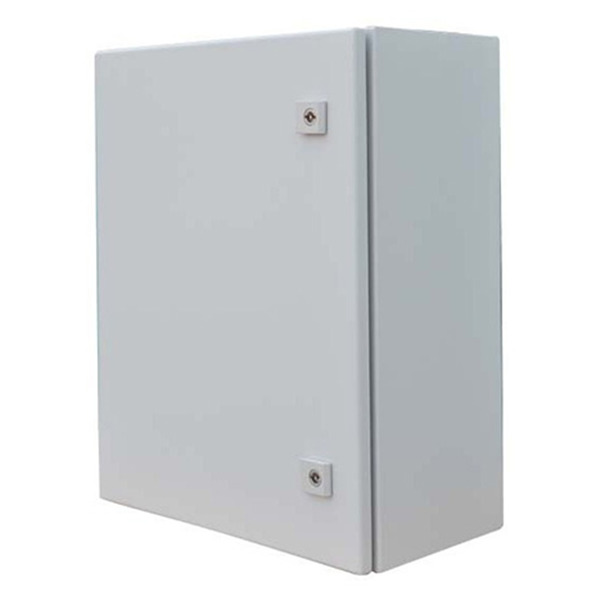

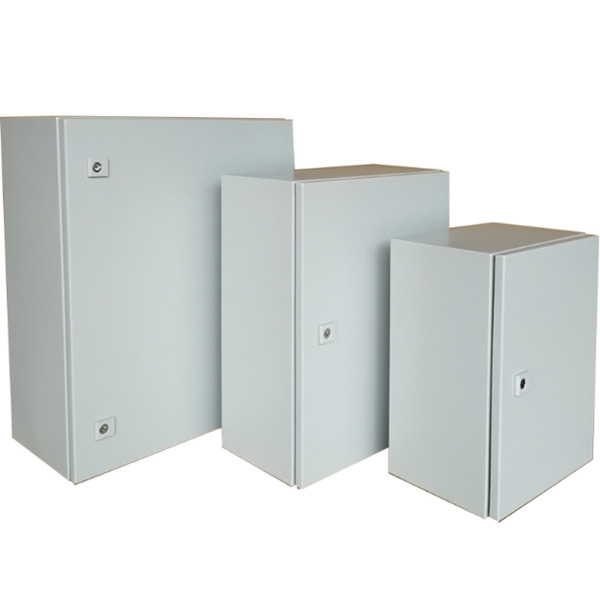

Wall-mounted control box
Material: cold rolled steel plate.
Surface treatment: the cabinet and the front door are dip-coated with primer, and the exterior is powder-coated.
Color: can be divided into RAL7032 and RAL7035, weave pattern, the mounting plate is galvanized.
Protection grade: IP65.
Standard configuration: door panel, box body, sealing strip, grounding kit, mounting plate, door lock.
Box body: 1.5mm Door panel: 2.0mm Mounting plate: 2.5mm.
Technical parameters
Features:
1.The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP65.
2. The installation board made of galvanized steel sheet can also be used for wiring outside the box.
3. The multi-layer folding protection slot at the mouth of the box can play a supplementary reinforcement role, and at the same time can prevent dirt and water from entering the box when the lid is opened.
4. The box door made of steel plate is equipped with a Xuanmo hinge that rotates 130°.
5. The cabinet body is dip-coated with primer, and all corners and edges are evenly coated with a protective layer to achieve the best protective effect.
6. The grounding wire can be connected to the box and door panel.
7. The lightweight lock series are extremely convenient to open and close.
8. The small holes and imprints on the back wall of the box can most directly fix the box on the wall, or it can be fixed with a wall hook.
| Items | Model | Dimensions (mm) | ||
| W | H | D | ||
| 1 | MAE203012 | 200 | 300 | 120 |
| 2 | MAE304021 | 300 | 400 | 210 |
| 3 | MAE405021 | 400 | 500 | 210 |
| 4 | MAE506021 | 500 | 600 | 210 |
| 5 | MAE606025 | 600 | 600 | 250 |
| 6 | MAE608025 | 600 | 800 | 250 |
| 7 | MAE601025 | 600 | 1000 | 250 |
| 8 | MAE601230 | 600 | 1200 | 300 |
The dimensions and color of the enclosures can be customized.
