270W×460Hx160D mm

  • Features
  • Accessories

Benefits for you:

Plastic Electrical Enclosures

1. Material :ABS and PC alloy


2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.


270W×460Hx160D mm

Technical parameters

Short introduction:Material: ABS and PC alloy, light gray,
Lock type: nut, surface mounted enclosures.
Product descriptionColor:Light Gray
Flame Retardant Grade:V-2,According to UL 94
Cover Fixing:Screw Cover
The fastening device is screwed into the bottom of the enclosures
Insulation Type:Full Insulation
Enclosure Protection Level (IP):IP66
Body Protection Level (IK):IK08
CertificationCE,Rohs,IP66,IK08
Packaging DetailsStandard Export Packing
PortNingbo/Shanghai China


Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
ModelFastening Screws(pcs)
220×340x1508.66"×13.39"x5.91"MD-PC2234154
230×330x1609.06"×12.99"x6.3"MD-PC2333164

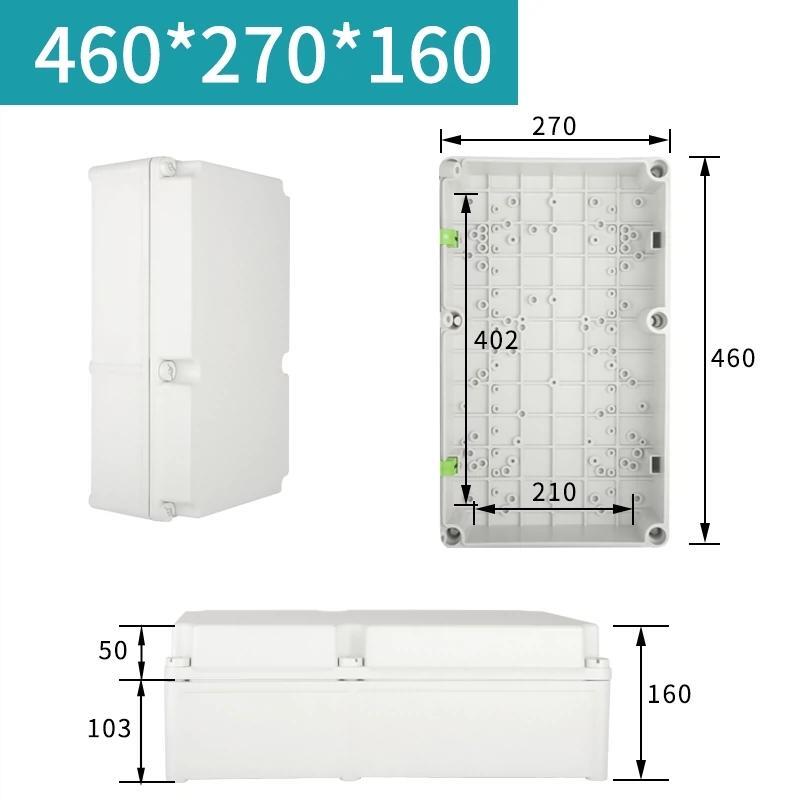

270×460x16010.63"×18.11"x6.3"MD-PC2746164
280×280x16011.02"×11.02"x6.3"MD-PC2828164
300×400x16011.81"×15.75"x6.3"MD-PC3040164
300×520x16011.81"×20.47"x6.3"MD-PC3052166
360×360x16014.17"×14.17"x6.3"MD-PC3636166
360×540×18014.17"×21.26"x7.09"MD-PC3654186
500×680x20019.69"×26.77"x7.87"MD-PC5068206
600×800×20023.62"×31.5"x7.87"MD-PC6080206
