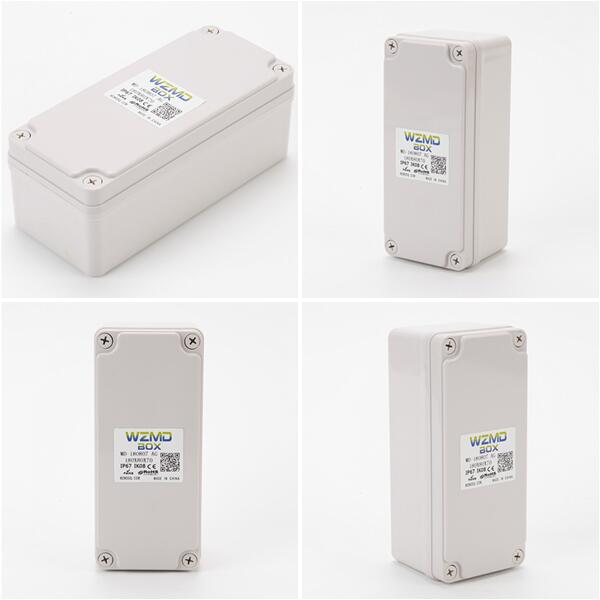

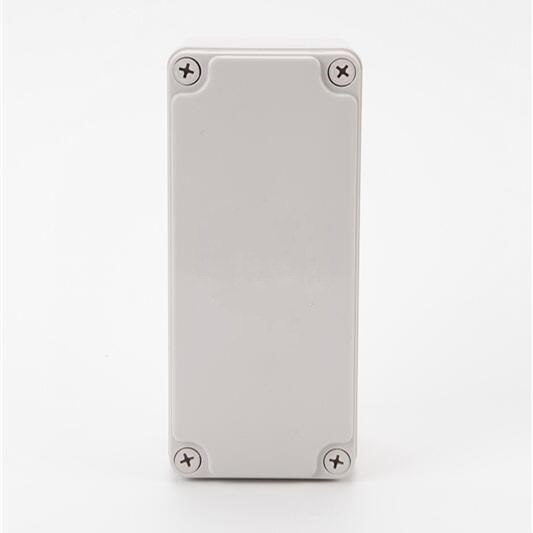

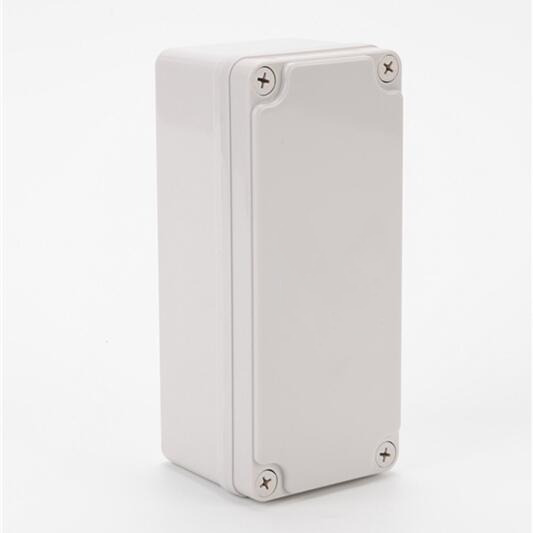

80W×180H×70D mm

  • Features
  • Accessories

Benefits for you:

Plastic Electrical Enclosures

1. Material :ABS


2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Color and material can be changed as your requirement.


6. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.


7. Your design is welcome,the cost of mould can be free when order a large quantity.


Technical parameters

Short introduction:Junction boxes with four PA66 screws, material: ABS, light gray,
Lock type: Nut, surface mounted enclosure.
Product DescriptionColor:Light Gray
Flame Retardant Grade:V-0,According to UL 94
Enclosure Material:ABS
Cover Fixing:PA66 Screw Sover
The fastening device is screwed into the bottom of the housing
Sealing Material:Silicone
Insulation Type:Full Insulation
Enclosure Protection Level (IP):IP67
Body Protection Level (IK):IK08
Working Temperature:-40°C--90°C
CertificationCE,Rohs,IP67,IK08
Packaging DetailsStandard Export Packing
PortNingbo/Shanghai China

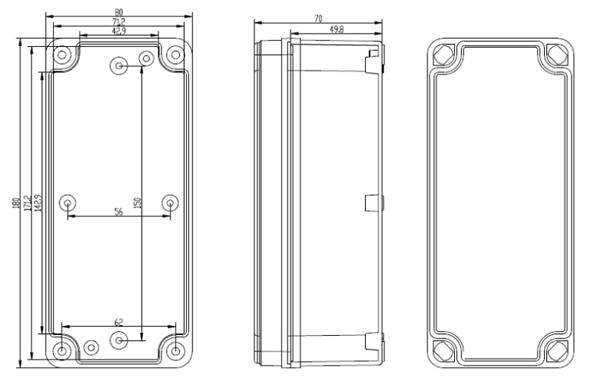

80×180×70(3.15"×7.09"x2.76")

80×180×70(3.15"×7.09"x2.76")


Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
ABS
(Solid Cover)
ABS/PC
(Transparent Cover)
Weight(PCS/Kg)Qty
(PCS/CTN)
50×65x551.97"×2.56"x2.17"MD-AG-050605MD-AT-0506050.1180
65×95×552.56"×3.74"x2.17"MD-AG-060905MD-AT-0609050.12160
80×110×503.15"×4.33"x1.97"MD-AG-081105MD-AT-0811050.14135
80×110×703.15"×4.33"x2.76"MD-AG-081107MD-AT-0811070.1690
80×110×853.15"×4.33"x3.35"MD-AG-081108MD-AT-0811080.1975
80×130×703.15"×5.12"x2.76"MD-AG-081307MD-AT-0813070.19140
80×130×853.15"×5.12"x3.35"MD-AG-081308MD-AT-0813080.21120
80×180×703.15"×7.09"x2.76"MD-AG-081807MD-AT-0818070.2490
80×250×703.15"×9.84"x2.76"MD-AG-082507MD-AT-0825070.2970
80×250×853.15"×9.84"x3.35"MD-AG-082508MD-AT-0825080.3360
100×100×753.94"×3.94"x2.95"MD-AG-101007MD-AT-1010070.18140
100×100×1003.94"×3.94"x3.94"MD-AG-101010MD-AT-1010100.21100
125×125×754.92"×4.92"x2.95"MD-AG-121207MD-AT-1212070.2572
125×125×1004.92"×4.92"x3.94"MD-AG-121210MD-AT-1212100.3160
125×175×754.92"×6.89"x2.95"MD-AG-121707MD-AT-1217070.3260
125×175×1004.92"×6.89"x3.94"MD-AG-121710MD-AT-1217100.3848
140×170×1005.51"×6.69"x3.94"MD-AG-141710MD-AT-1417100.4245
150×200×1005.91"×7.87"x3.94"MD-AG-152010MD-AT-1520100.3940
150×200×1305.91"×7.87"x5.12"MD-AG-152013MD-AT-1520130.5132
150×250×1005.91"×9.84"x3.94"MD-AG-152510MD-AT-1525100.5632
150×250×1305.91"×9.84"x5.12"MD-AG-152513MD-AT-1525130.6524
175×175×1006.89"×6.89"x3.94"MD-AG-171710MD-AT-1717100.4936
190×280×1307.48"×11.02"x5.12"MD-AG-192813MD-AT-1928130.9416
190×280×1807.48"×11.02"x7.09"MD-AG-192818MD-AT-1928181.0912
190×380×1307.48"×14.96"x5.12"MD-AG-193813MD-AT-1938131.186
190×380×1807.48"×14.96"x7.09"MD-AG-193818MD-AT-1938181.844
200×200×1007.87"×7.87"x3.94"MD-AG-202010MD-AT-2020100.5930
200×200×1307.87"×7.87"x5.12"MD-AG-202013MD-AT-2020130.6724
280×280×13011.02"×11.02"x5.12"MD-AG-282813MD-AT-2828131.186
280×280×18011.02"×11.02"x7.09"MD-AG-282818MD-AT-2828181.356
280×340×13011.02"×13.38"x5.12"MD-AG-283413MD-AT-2834131.346
280×340×18011.02"×13.38"x7.09"MD-AG-283418MD-AT-2834181.64
280×380×13011.02"×14.96"x5.12"MD-AG-283813MD-AT-2838131.396
280×380×18011.02"×14.96"x7.09"MD-AG-283818MD-AT-2838181.634


If it does not match the product dimension you want, please contact us.
