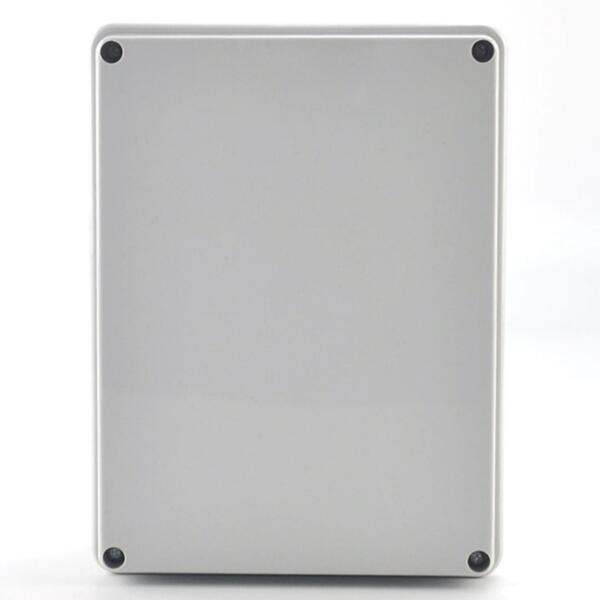

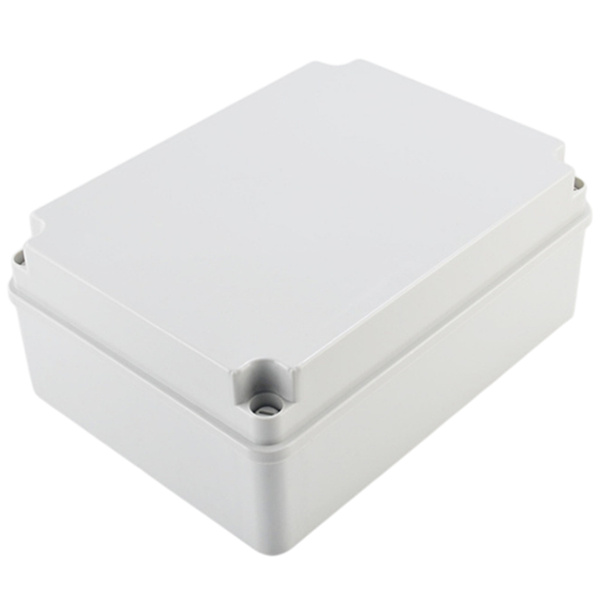

140W×190H×70D mm

  • Features
  • Accessories

Benefits for you:

Plastic Electrical Enclosures


1)Material :ABS

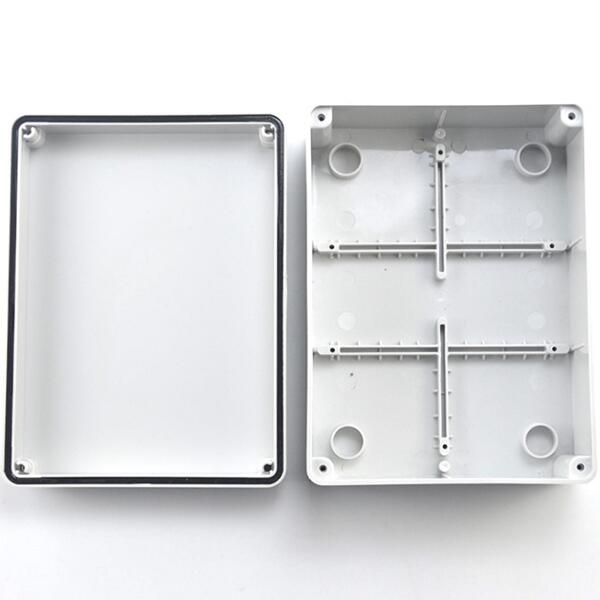

2)Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3)Higher intensity, and more durable.


4)Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5)Color and material can be changed as your requirement.


6)Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.


7)Your design is welcome,the cost of mould can be free when order a large quantity.


Technical parameters

Product DescriptionColor:light gray
Flame Retardant Grade:V-0,According to UL 94
Enclosure Material:ABS
Cover Fixing:Screw Cover

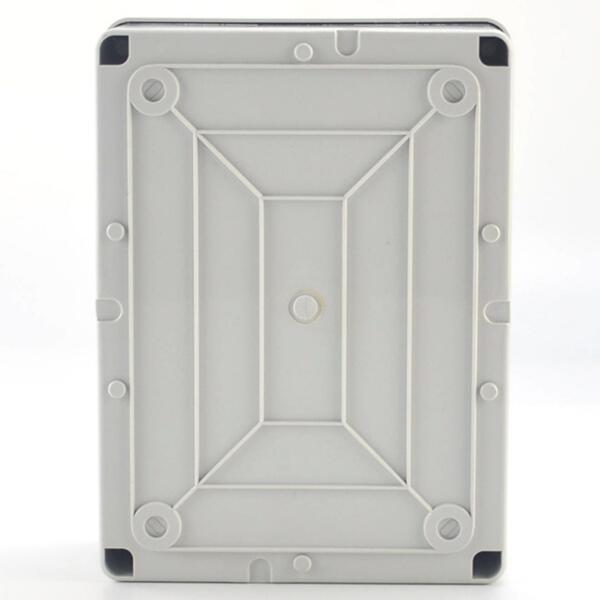

The fastening device is screwed into the bottom of the enclosures
Insulation Type:Full Insulation
Enclosure Protection Level (IP):IP65
Body Protection Level (IK):IK08
CertificationCE,Rohs,IP65,IK08
Packaging DetailsStandard Export Packing
PortNingbo/Shanghai China




Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
ModelWeight
(PCS/Kg)
Qty
(PCS/CTN)
80×120×503.15"×4.72"×1.97"MD-DG-0812050.15100
110×150×704.33"×5.91"×2.76"MD-DG-1115070.260
140×190×705.51"×7.48"×2.76"MD-DG-1419070.3430
190×240×907.48"×9.45"×3.54"MD-DG-1924090.620
220×300×1208.66"×11.81"×4.72"MD-DG-223012110
300×380×12011.81"×14.96"×4.72"MD-DG-3038121.710


If it does not match the product dimension you want, please contact us.
