RA Series

Home / Products / Screw Type Polycarbonate Enclosures / RA Series / 80Wx80Hx50D mm

    • 80Wx80Hx50D mm
    • 80Wx80Hx50D mm
    • 80Wx80Hx50D mm
  • 80Wx80Hx50D mm
  • 80Wx80Hx50D mm
  • 80Wx80Hx50D mm

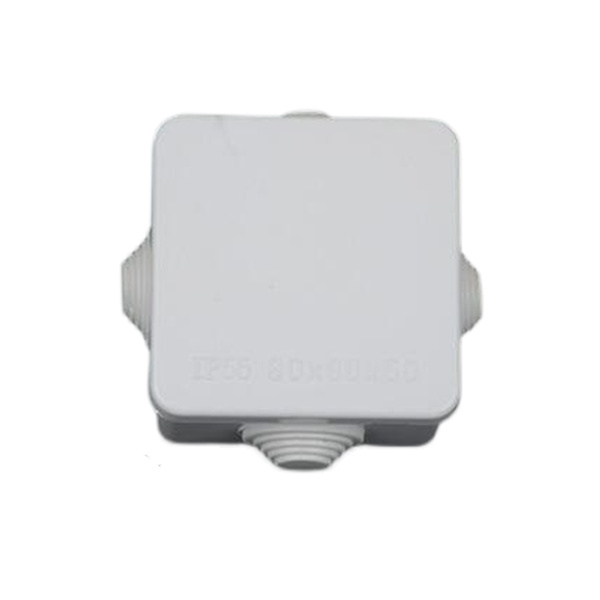

80Wx80Hx50D mm

  • Features
  • Accessories

Benefits for you:

Enclosures Material: ABS

Hole Plug Material: PVC


Material Characteristics: impact resistance, heat resistance, low temperature resistance, chemical resistance, excellent electrical properties, and good surface gloss.

Uses: Suitable for indoor and outdoor electrical, communications, fire-fighting equipment, steel smelting, petrochemical, electronics, power, railways, construction sites, mining fields, airports, hotels, ships, large factories, coastal factories, unloading terminal equipment, sewage and wastewater Treatment facilities, environmental pollution facilities, etc.


Installation Method:

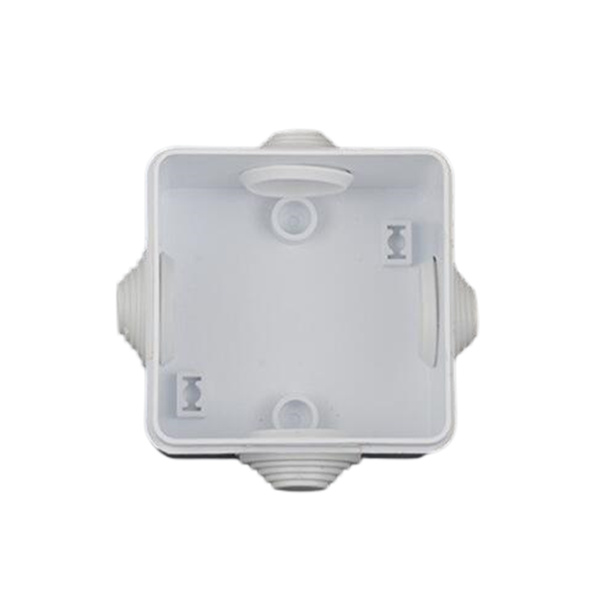

1)Internal Installation: There are bosses for the installation of circuit boards or DIN rail components inside the box.

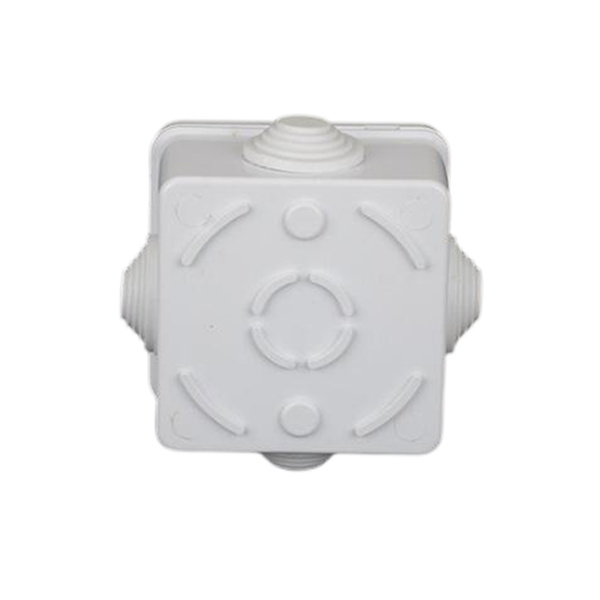

2)External Installation: It can be directly fixed to the wall through the installation hole at the bottom of the box (It can be directly fixed to the wall or board with screws or nails through the four corners of the box.


3)Inlet And Outlet Hole: The waterproof box can be selected on the existing hole plug according to the size of the wire, or it can be equipped with a waterproof clamping connector to achieve the best waterproof effect.


Technical parameters


Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
Reserved TypeKnockout TypeHole
QTY
Hole Size
(MM)
IP Rated
φ50×50φ1.97"×1.97"MD-RA 0505MD-RT 0505425IP55
φ80×50φ3.15"×1.97"MD-RA 0805MD-RT 0805425IP55
85×85×503.35"×3.35"×1.97"MD-RA 080805MD-RT 080805725IP65
100×100×703.94"×3.94"×2.76"MD-RA 101007MD-RT 101007725IP65
100×200×703.94"×7.87"×2.76"MD-RA 102007MD-RT 102007825IP65
110×150×704.33"×5.91"×2.76"MD-RA 111507MD-RT 1115071025IP65
150×150×705.91"×5.91"×2.76"MD-RA 151507MD-RT 151507825IP65
155×200×806.1"×7.87"×3.15"MD-RA 152008MD-RT 1520081036IP65
200×200×807.87"×7.87"×3.15"MD-RA 202008MD-RT 2020081236IP65
200×255×807.87"×10.04"×3.15"MD-RA 202508MD-RT 2025081236IP65
200×255×1207.87"×10.04"×4.72"MD-RA 202512MD-RT 2025121236IP65
250×300×1209.84"×11.81"×4.72"MD-RA 253012MD-RT 2530121236IP65
350×400×12013.78"×15.75"×4.72"MD-RA 354012MD-RT 3540121636IP65


If it does not match the product dimension you want, please contact us.
