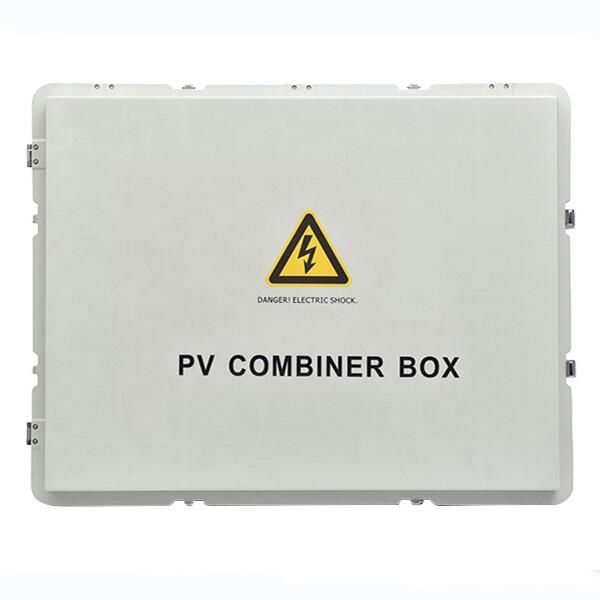

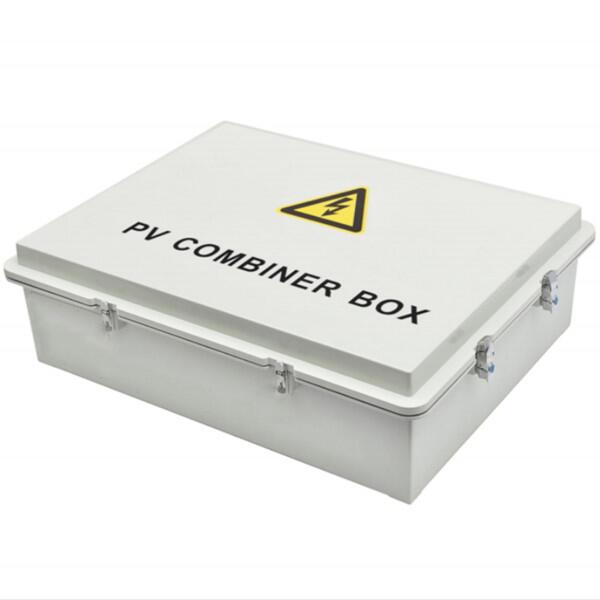

CUSTOMIZED PV COMBINER BOXES FOR 16,20,24 STRINGS

  • Features
  • Accessories

Benefits for you:

SPECIFICATION

IP65 DC string boxes is designed for 16,20,24 strings PV system.


CUSTOMIZED PV COMBINER BOXES FOR 16,20,24 STRINGS

CUSTOMIZED PV COMBINER BOXES FOR 16,20,24 STRINGS



Technical parameters

Product NameDC combiner box
Model CodeMDB-PV
Rated Voltage1500V
Input16,20,24 strings
Output1 string
Temperature range-25~+60
Enclosure
IP Protection ClassIP66
MaterialsReinforced fiberglass polyester
SpecUV resistance and Flame retardant
DC switch
Rated Voltage1500V
Rated Current125A
DC SPD
Max Operating Voltage1500V
Max Discharge Current40KA
Nominal discharge current20KA
DC Fuse
Rated Voltage1500V
Fuse32A 10×85MM
LED indicatorAvailable

CUSTOMIZED PV COMBINER BOXES FOR 16,20,24 STRINGS
