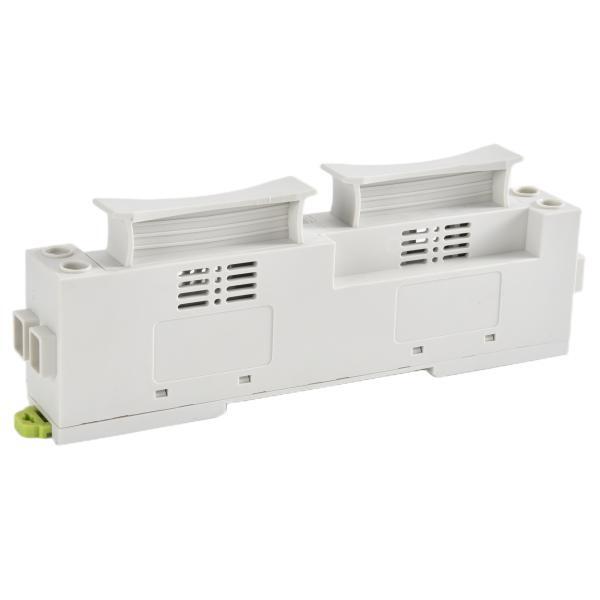

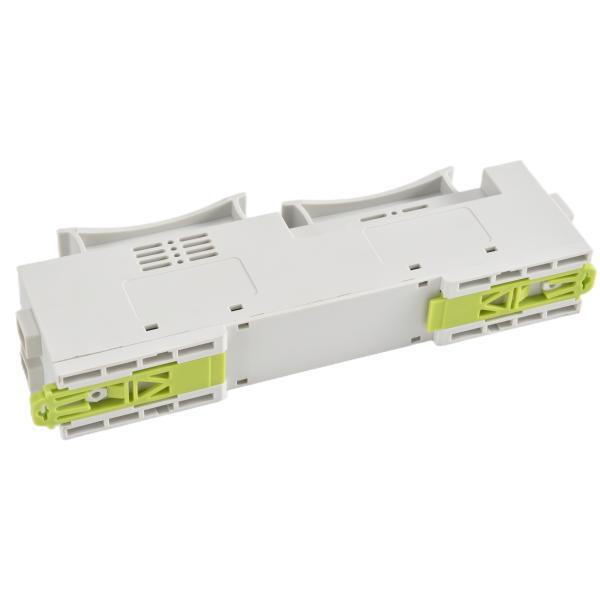

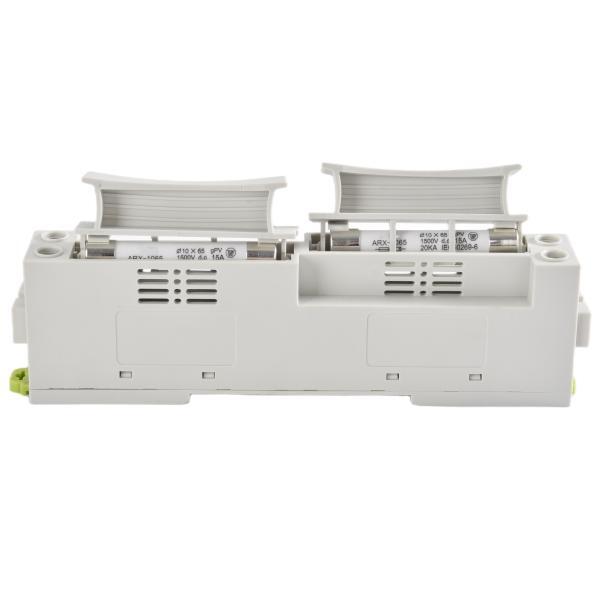

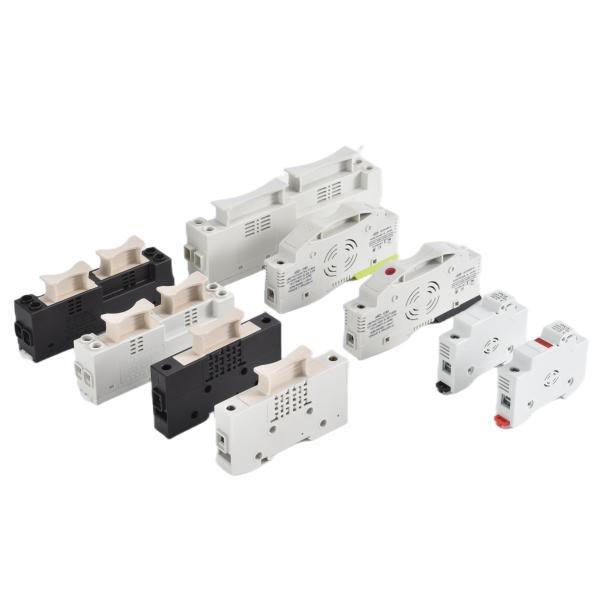

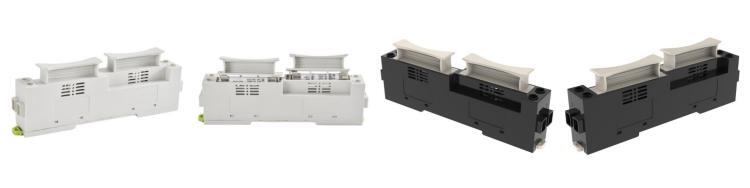

1500V Double Fuse Holder

1. Features

This series of fuses is suitable for rated DC voltage up to 1500V, rated current up to 32A in line.

It is connected in series and parallel with photovoltaic panels and batteries, and short-circuits the charging and converting system break protection and at the same time protect the photovoltaic power station, confluence inverter rectifier system and short-circuit fault break protect.

And as photovoltaic power generation system surge current and short-circuit fault overvoltage rapid breaking protection, the rated breaking capacity is 20KA, and the product complies with international and national standards GB13539.6 and the provisions of IEC60269-6.

2. Working conditions

The upper limit of the ambient air temperature shall not exceed 90°C, and the lower limit of the ambient air temperature shall not be lower than -40°C.

The altitude of the installation site does not exceed 2000m (if the altitude exceeds this 2000m, you need to specify the requirements, the company can design, develop and produce according to customer requirements).

3. Product category

"gPV" means full-range breaking capacity for overcurrent protection of solar photovoltaic systems the DC fuse.

4. Main Technical Data

Rated voltage: 1500VDC
Rated current: 32A
Suitable fusible core specification: 10 x 65mm
Protection characteristics: gPV
Shell material: PA66
Temperature tolerance: -40℃~120℃
Flame retardant rating of shell: UL94-V0
Fitted rail specification: TH75
Terminal screw torque: 2.5N.m～3N.m
Conductor cross-sectional area: 2.5～16mm2
Installation support: rail
Ipk rated peak withstand current: 20kA
Product certification: TUV, CE, RoHS
Protective treatment: TH
Storage environment temperature: -40~80 °C
Standard: GB14048 IEC60269
