Polycarbonate Enclosure 151509 Solid Cover

  • Features
  • Accessories

Benefits for you:


Polycarbonate Enclosure 151509 Solid Cover

Waterproof Electrical Boxes(Hinge Type)


1. Material : Polycarbonate.


2. Bosses on internal base allow horizontal fixing of electrical components or connection of terminals ,etc into threaded brass.


3. Higher intensity, and more durable.


4. Better waterproof and Anti-corrosion performance,protect your instruments even under adverse environment.


5. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching,silk-screen,printing and etc.

Technical parameters

Short introduction:Material: Polycarbonate, light gray,
Lock type: SUS Buckle, surface mounted enclosure.
Flame retardant grade:V-0,According to UL 94
Cover fixing:SUS latch, Plastic hinge
The fastening device is screwed into the bottom of the enclosures
Insulation type: Total insulation (Class II)
Enclosure protection level (IP):IP67
Body protection level (IK):IK10
Packaging DetailsStandard export packing
PortNingbo/Shanghai China


150Wx150Hx90D mm


150Wx150Hx90D mm

Dimensions(mm)
W×L×H
Dimensions(Inch)
W×L×H
Solid CoverTransparent Cover

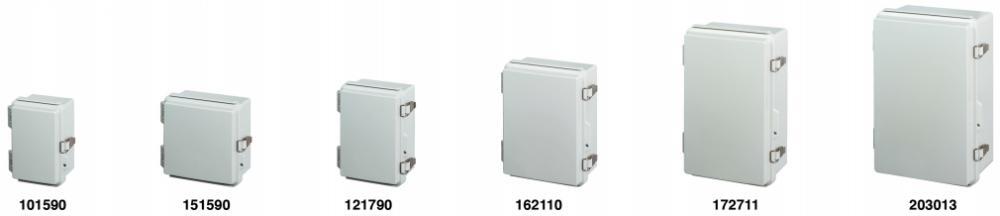

100×150x903.94"×5.91"x3.54"101509-B101509-A
125×175x904.92"×6.89"x3.54"121709-B121709-A
150×150x905.91"×5.91"x3.54"151509-B151509-A
160×210x1006.3×8.28"x3.94"162110-B162110-A
175×275x1106.89"×10.83"x4.33"172711-B172711-A
200×300x1307.87"×11.81"x5.12"203013-B203013-A

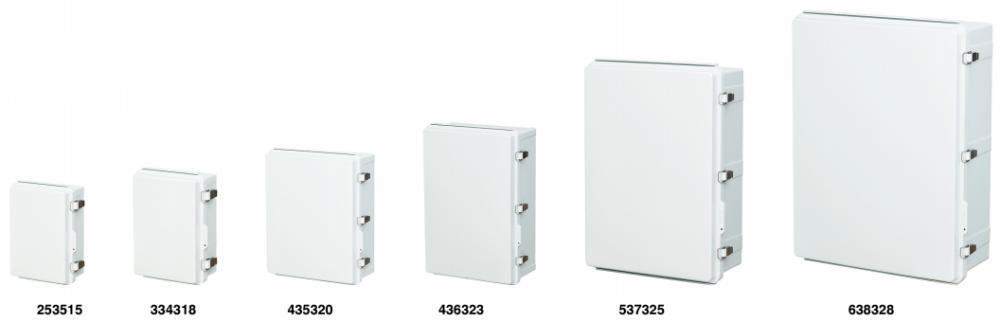

250×350x1509.84"×13.78"x5.91"253515-B253515-A
330×430×18013"×16.93"x7.09"334318-B334318-A
430×530x20016.93"×20.87"x7.87"435320-B435320-A
430×630×23016.93"×24.8"x9.06"436323-B436323-A
530×730×25020.87"×28.74"x9.84"537325-B537325-A
630×830×28024.8"×32.68"x11.02"638328-B638328-A


Inner door and mounting plate are optional
