SPECIFICATION

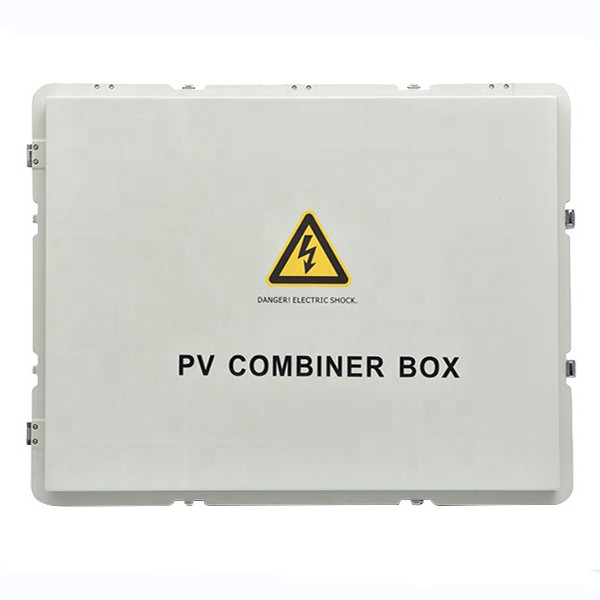

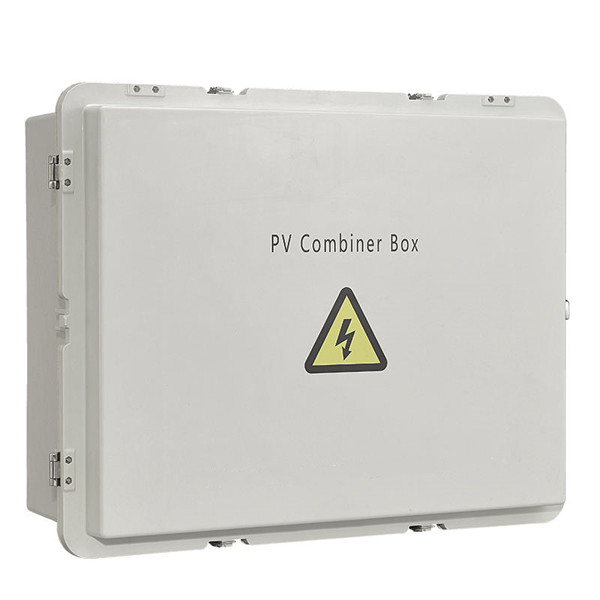

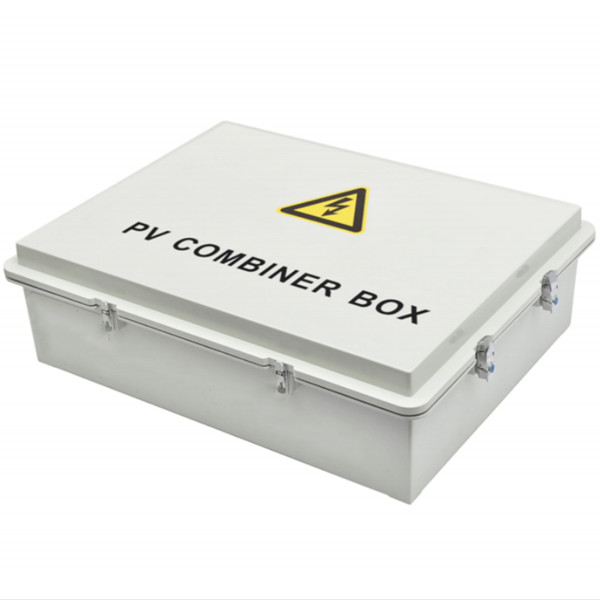

IP65 DC string box is designed for 16,20,24 string PV system.
Technical parameters
| Product Name | DC combiner box |
| Model Code | MDB-PV |
| Rated Voltage | 1500V |
| Input | 16,20,24strings |
| Output | 1string |
| Temperature range | -25℃~+60℃ |
| Enclosure | |
| IP Protection Class | IP66 |
| Materials | Reinforced fiberglass polyester |
| Spec | UV resistance and Flame retardant |
| DC switch | |
| Rated Voltage | 1500V |
| Rated Current | 125A |
| DC SPD | |
| Max Operating Voltage | 1500V |
| Max Discharge Current | 40KA |
| Nominal discharge current | 20KA |
| DC Fuse | |
| Rated Voltage | 1500V |
| Fuse | 32A 10×85MM |
| LED indicator | Available |
None
-
DC1000V 1500V Customized PV Combiner Box 16strings,20strings,24strings
