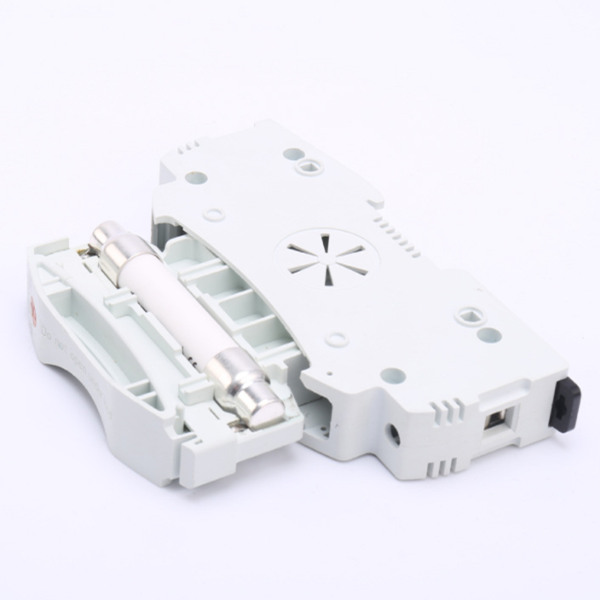

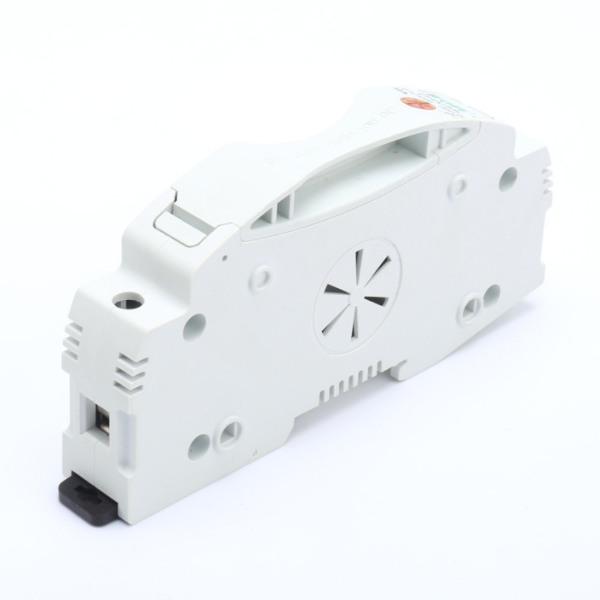

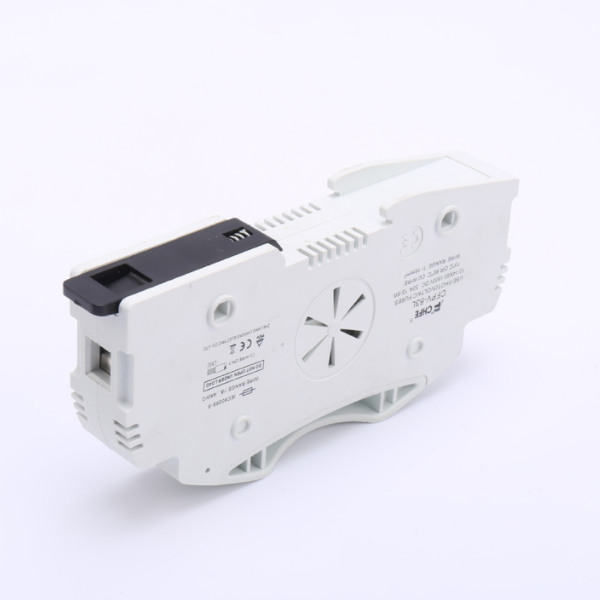

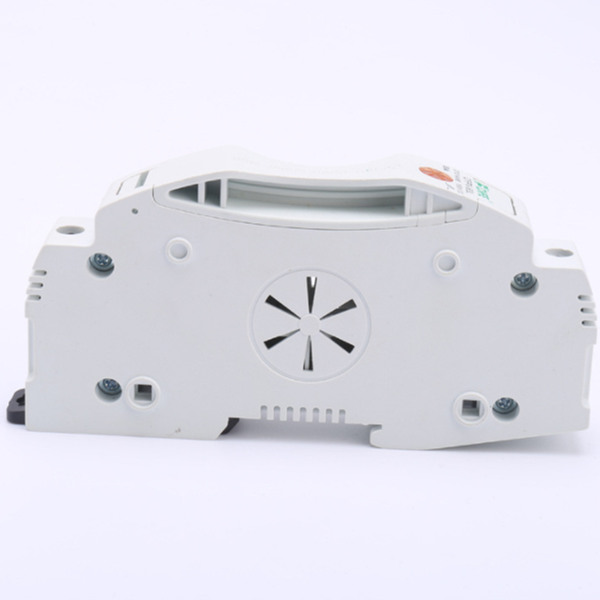

DC 1500V Fuse Holder(With Indicator Light)

  • Features
  • Accessories

Benefits for you:

Application

DC1500V Fuse Holder was designed and manufactured,complying with the standard IEC60947-3,IEC60269-6.The rated current up to 32A, rated voltageup to DC1500V.It applied for PV combiner box, inverter etc,with the main function of over-current protection and effective disconnection.

Feature

  • Special DC fuse for Photovoltaic

  • Max breaking capacity up to 25KA,Effective protection

  • With light / without light

  • Led Indicator, reminding fuse link replacement

  • Rated Voltage: DC1500V

  • Rated Current: 32A

  • Class of Operation: gPV

  • Be suit for 10x85mm/14x85mm Fuse size

  • Standard:IEC60947-3,IEC60269-6


Technical parameters

Parameter



Electrical Characteristics
ItemDC 1500V Fuse Holder
StandardIEC60947-3 /IEC60269-6
Pole1P
Rated Working Voltage     UeDC 1500V
Rated Current               In32A
Breaking Capacity20KA
Time Constant1-3ms
Control and Indication
Operating State / Fault IndicationIndicator Light OFF / Indicator Light ON
Connection and Installation
Wire2.5mm2*25mm2
Terminal ScrewsM5
Torque                 NM2.5
Ingress ProtectionIP20
Installation Environment

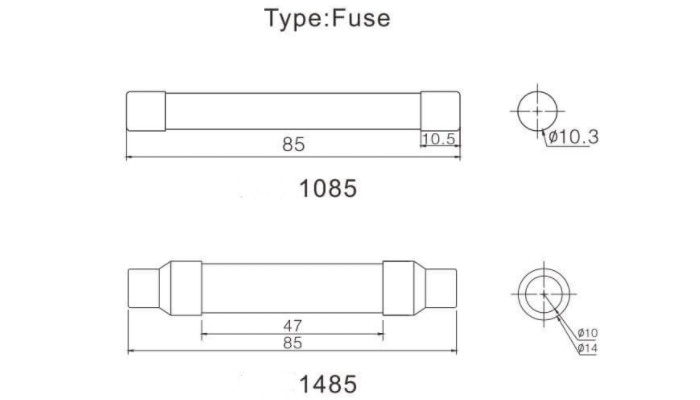

Fuse Size10x85mm / 14x85mm
Operating Temperature Range TU-40 ~+85℃

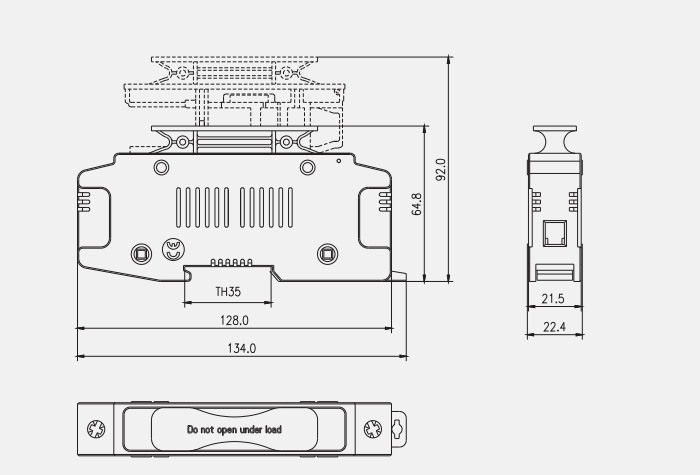

Installation ModeTH35-7.5/DIN35
Pollution Grade3
Relative Humidity+20^C < 95%,+40°C < 50%
Weight0.07kg Per pole
Installation LevelIII
DC 1500V Fuse Holder(With Indicator Light)

DC 1500V Fuse Holder(With Indicator Light)

DC 1500V Fuse Holder(With Indicator Light)


DC 1500V Fuse Holder(With Indicator Light)
