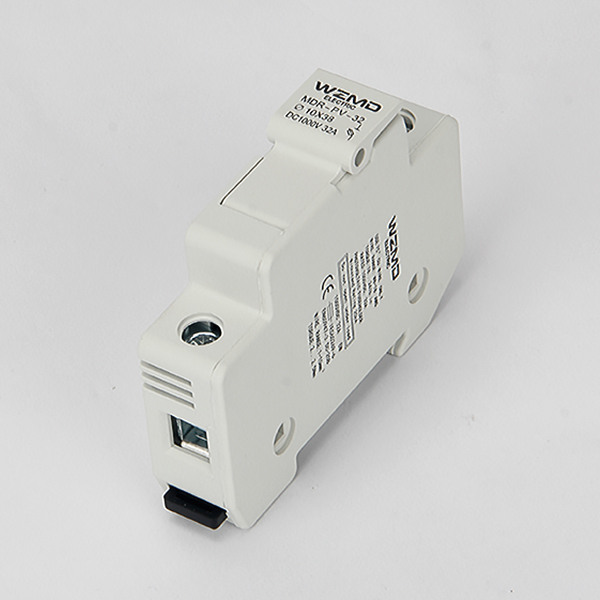

DC Fuse Holder(Without Indicator Light)

  • Features
  • Accessories

Benefits for you:

Application

DC Fuse Holder was designed and manufactured, complying with the standard IEC60947-3,IEC60269-6.The rated current up to 32A, rated voltage up to DC1000V.It applied for PV combiner box, inverter etc, with the main function of over-current protection and effective disconnection.

Feature

  • Special DC fuse for Photovoltaic

  • Max breaking capacity up to 20KA,Effective protection

  • With light / without light

  • Led Indicator, reminding fuse link replacement

  • Rated Voltage: DC1000V

  • Rated Current: 32A

  • Class of Operation: gPV

  • Be suit for 10x38mm Fuse size

  • Standard:IEC60947-3,IEC60269-6


Technical parameters

Parameter



Electrical Characteristics
ItemDC Fuse Holder
StandardIEC60947-3 /IEC60269-6
Pole1P
Rated Working Voltage     UeDC 1000V
Rated Current               In32A
Breaking Capacity20KA
Max Power Dissipation3.2W
Rated Impulsed Voltage      Uimp6KA

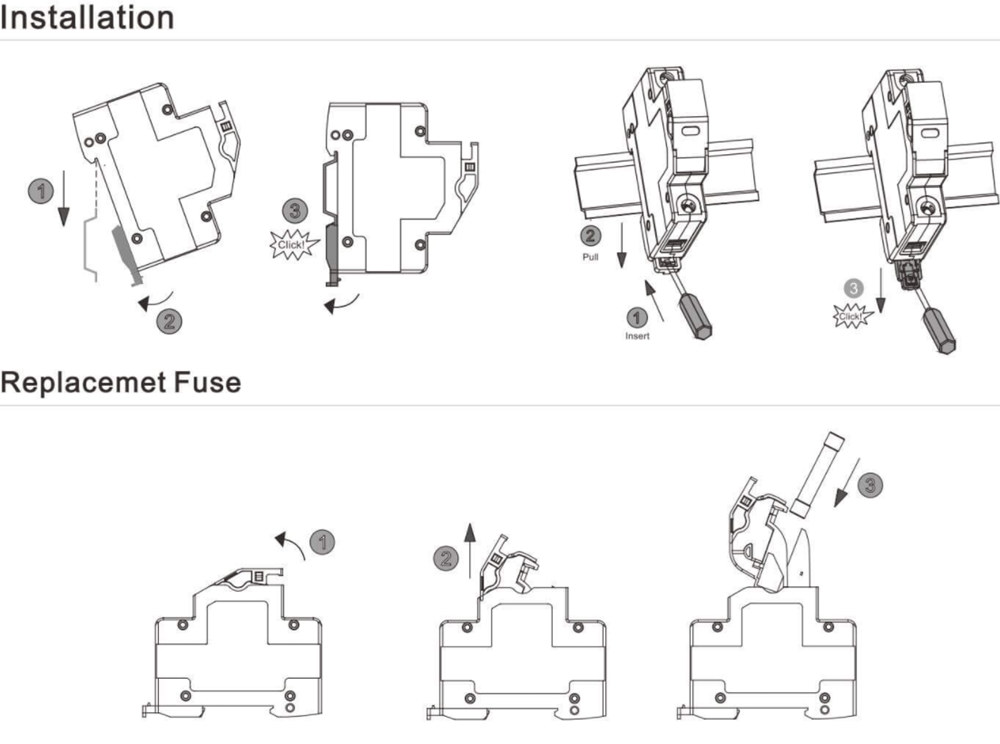

Connection and Installation
Wire2.5mm2-25mm2
Terminal ScrewsM5
Torque                 NM2.5
Ingress ProtectionIP20
Installation Environment

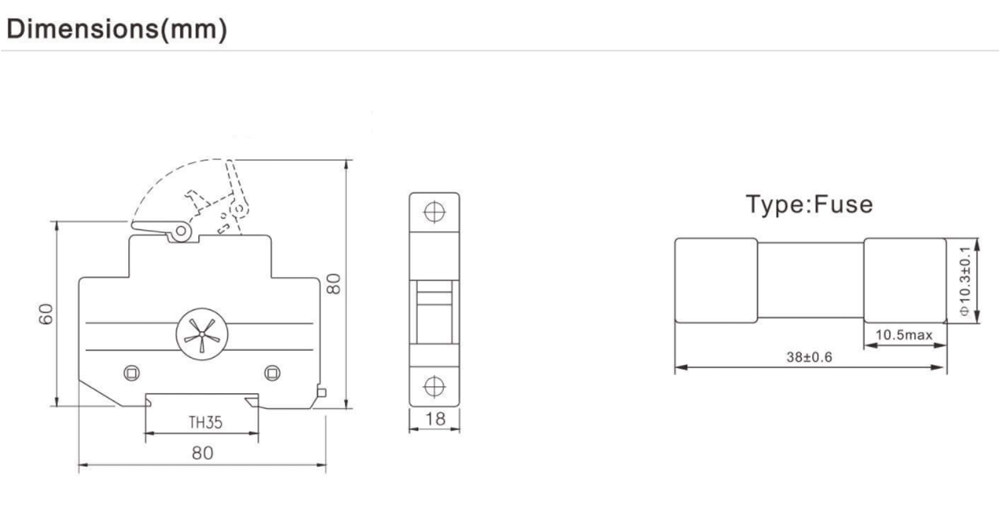

Fuse Size10x38mm
Operating Temperature Range TU-40 ~+85°C
Installation ModeTH35-7.5/DIN35
Relative Humidity+20°C < 95%,+40°C < 50%
Weight0.07kg Per pole
Installation LevelIII

DC Fuse Holder(Without Indicator Light)


DC Fuse Holder(Without Indicator Light)

DC Fuse Holder

DC Fuse Holder
