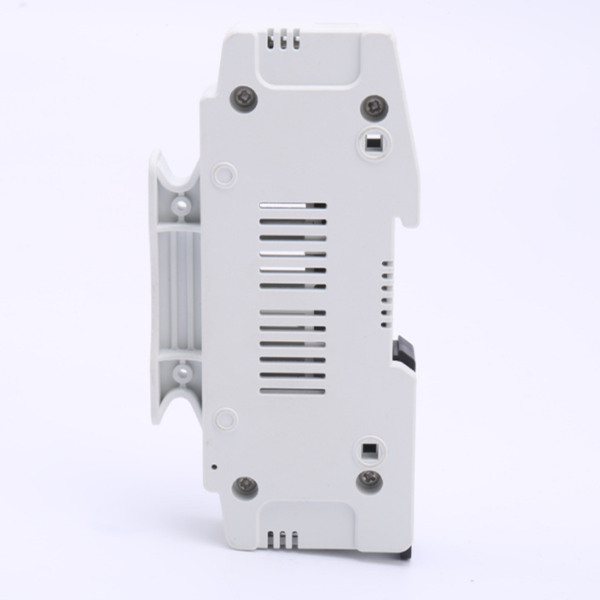

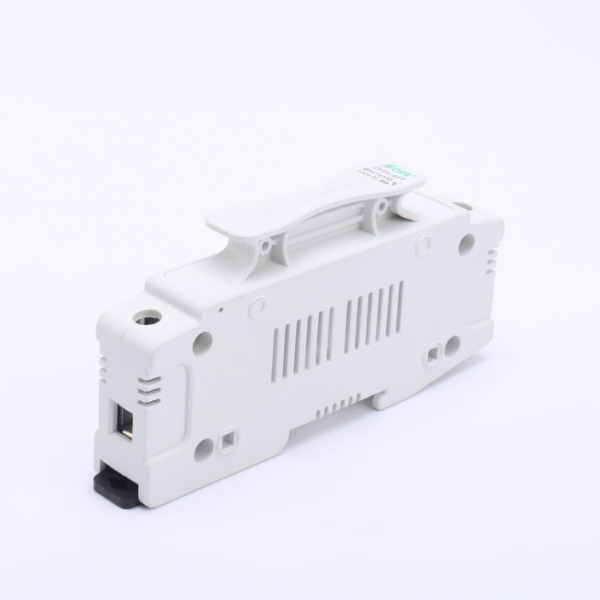

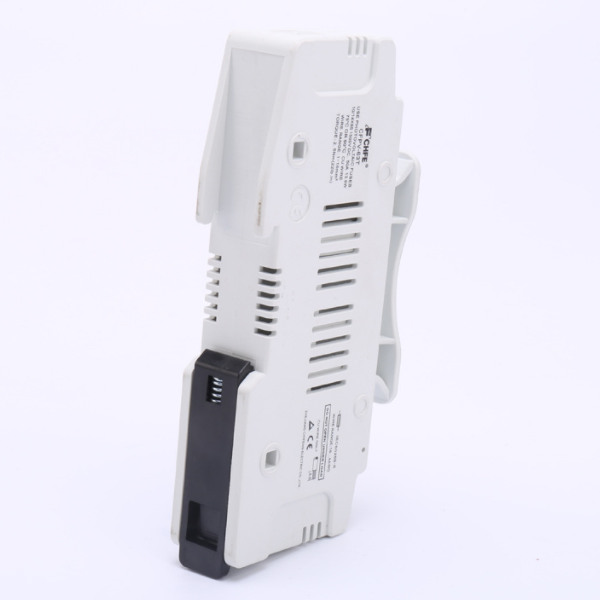

DC 1500V Fuse Holder

  • Features
  • Accessories

Benefits for you:

Application

DC1500V Fuse Holder was designed and manufactured,complying with the standard IEC60947-3,IEC60269-6.The rated current up to 32A, rated voltageup to DC1500V.It applied for PV combiner box, inverter etc,with the main function of over-current protection and effective disconnection.

Feature

  • Special DC fuse for Photovoltaic

  • Max breaking capacity up to 25KA,Effective protection

  • With light / without light

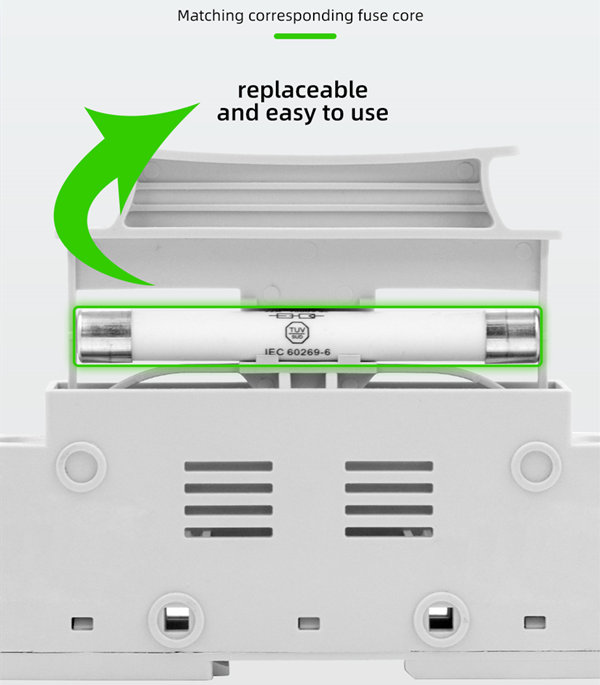

  • Led Indicator, reminding fuse link replacement

  • Rated Voltage: DC1500V

  • Rated Current: 32A

  • Class of Operation: gPV

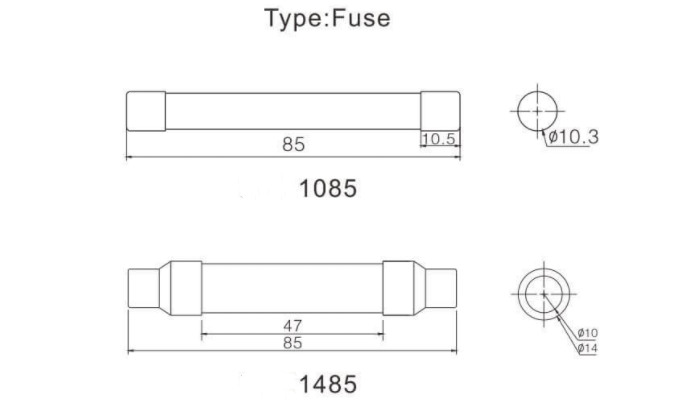

  • Be suit for 10x85mm/14x85mm Fuse size

  • Standard:IEC60947-3,IEC60269-6


Technical parameters

Parameter



Electrical Characteristics
ItemDC 1500V Fuse Holder
StandardIEC60947-3 /IEC60269-6
Pole1P
Rated Working Voltage     UeDC 1500V
Rated Current               In32A
Breaking Capacity20KA
Time Constant1-3ms
Control and Indication
Operating State / Fault IndicationIndicator Light OFF / Indicator Light ON
Connection and Installation
Wire2.5mm2*25mm2
Terminal ScrewsM5
Torque                 NM2.5
Ingress ProtectionIP20
Installation Environment
Fuse Size10x85mm / 14x85mm
Operating Temperature Range TU-40 ~+85℃

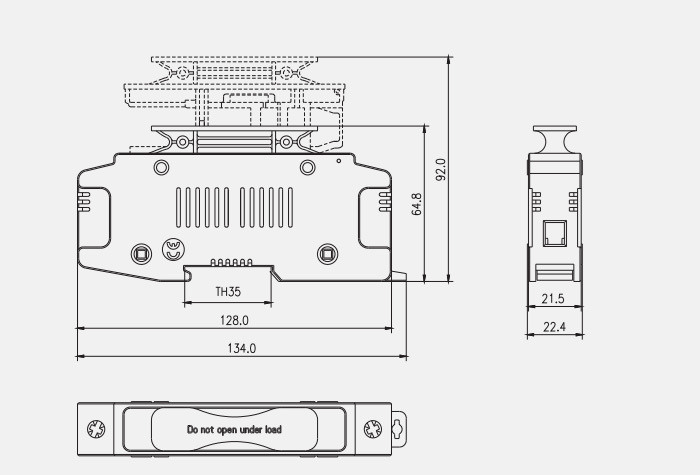

Installation ModeTH35-7.5/DIN35
Pollution Grade3
Relative Humidity+20^C < 95%,+40°C < 50%
Weight0.07kg Per pole
Installation LevelIII

DC 1500V Fuse Holder(Without Indicator Light)


DC 1500V Fuse Holder(Without Indicator Light)

DC 1500V Fuse Holder(Without Indicator Light)

DC 1500V Fuse Holder(Without Indicator Light)

DC 1500V Fuse Holder(Without Indicator Light)
