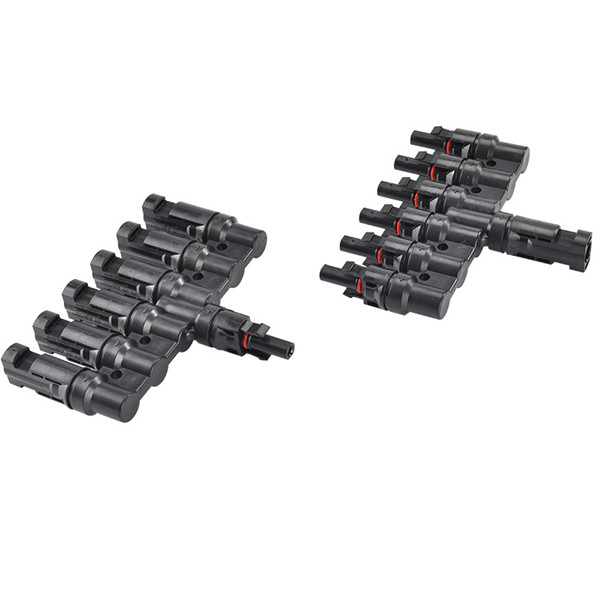

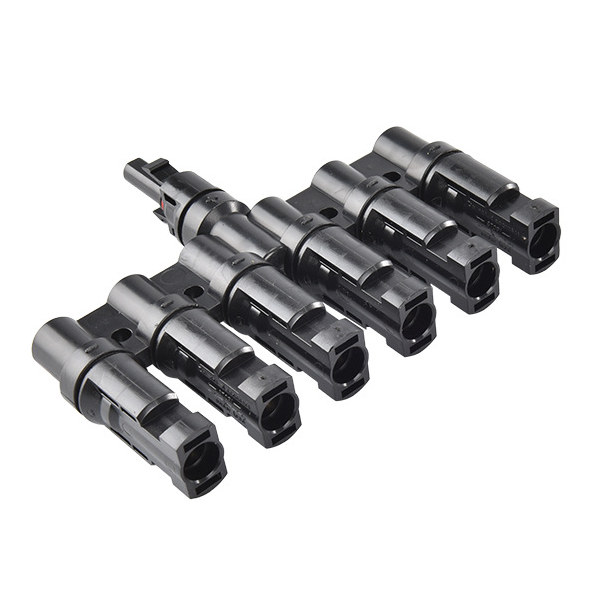

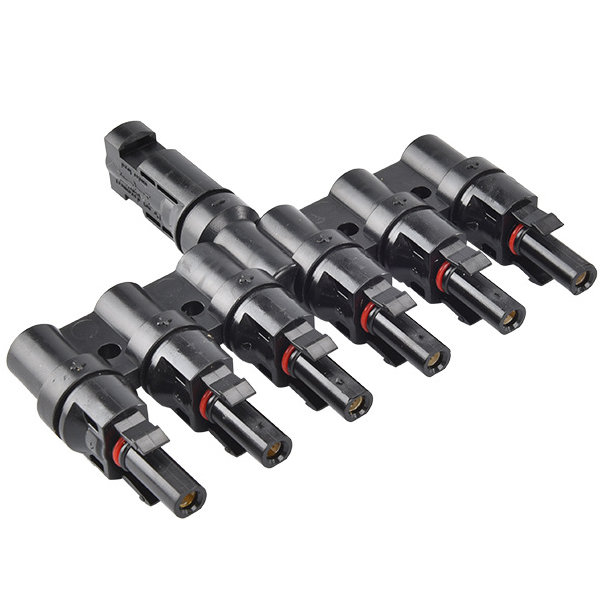

Solar Connector dc1000v 6 to 1 for solar system male & female t type pv connector

Inquire Now Next Product

Benefits for you:

Product features:

·Simple on-site processing

·Mating safety provided by keyed housings

·Mutiple plugging and unplugging cycles

·Accomodates PV cable with deferent insulation diamaters

·High Voltage and Current carrying capacity

·Waterproof grade: IP67

·Housing made of PPO material, anti-UV

·CE approved

·Competitive price

Technical parameters

Technical data:

Item	Solar T connector
Rated Current	32A
Rated voltage	1000V DC
Rated impulse voltage	6kV(50Hz,1min.)
Contact resistance of plug connectors	CAT III /2
Contact resistance of plug connectors	0.5mΩ
Degree of protection(mated)	IP67
Degree of protection(unmated)	IP2X
Contact material	Copper Alloy,tin-plated
Insulation material	PPO
Locking system	Snap-in
Flame class	UL-94-V0
Insertion Force/Withdrawal Force	≤ 50N/ ≥ 50N
Temperature Range	-40℃ ~ +95℃

Solar Connector dc1000v 6 to 1 for solar system male
